Description

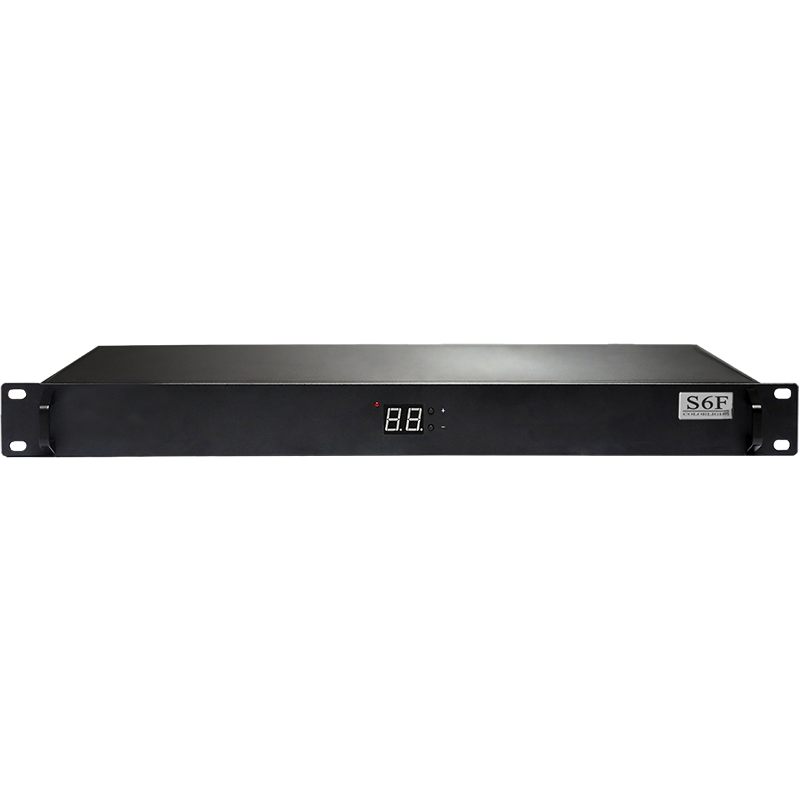

S6F HD Sender possesses powerful video signal receiving capacity, and supports DVI&HDMI HD signal input and loop output, with max input resolution of 1920×1200 pixels. Meanwhile, 6 Gigabit Ethernet and 3 optical fiber output ports support big LED display of 4096 pixels in maximum width or 2560 pixels in maximum height.
Technical Specifications:

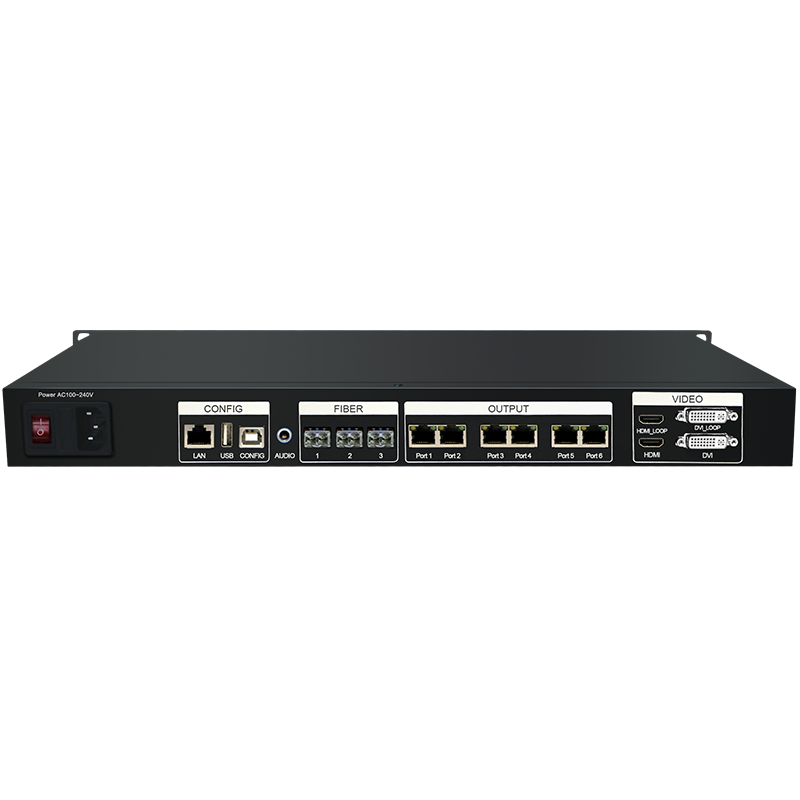

- Video input ports including 1 HDMI with loop, 1 DVI with loop;
- Support input resolution up to 1920×1200@60Hz;
- Loading capacity: 2.3 million pixels, Maximum width: 4096 pixels, Maximum height: 2560 pixels;
- 6 Gigabit Ethernet ports support screen arbitrary splicing;
- Supports 3 optical fiber outputs;
- Dual USB2.0 for high-speed configuration and easy cascading;
- Supports splicing and cascading among several senders with synchronization strictly;
- Supports control via 100M Ethernet;
- Supports brightness and chromaticity adjustment;
- Supports improved gray-scale at low brightness;
- Supports HDCP;
- Compatible with all receiving cards, multifunction cards, optical fiber converters of Colorlight.
