Description

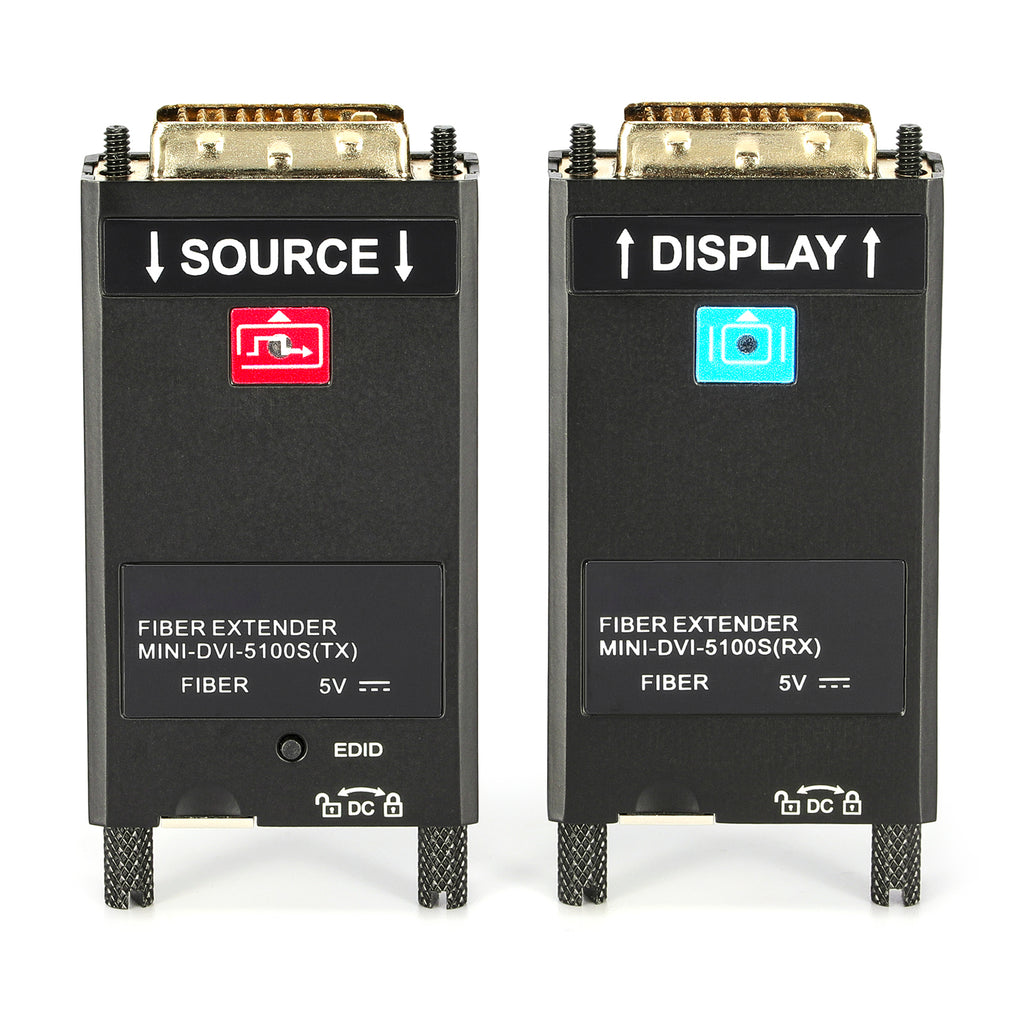

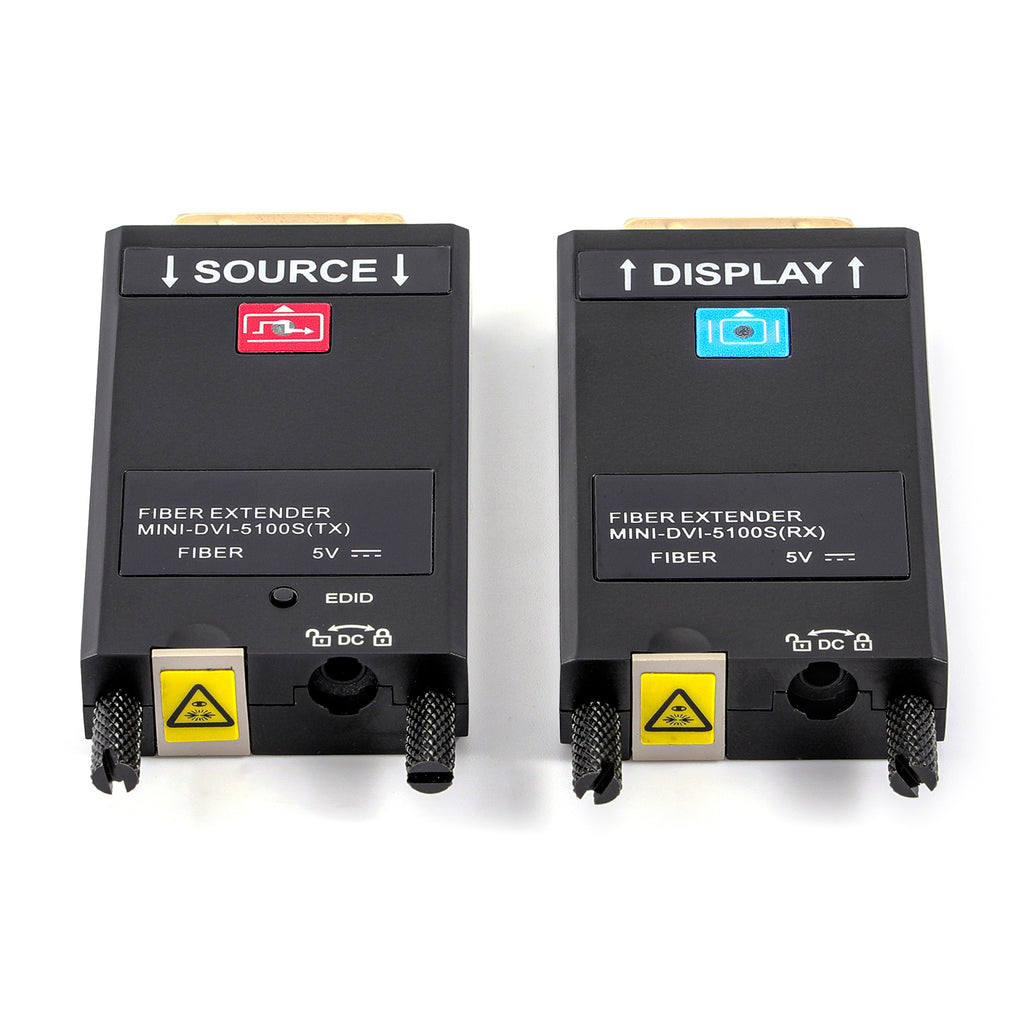

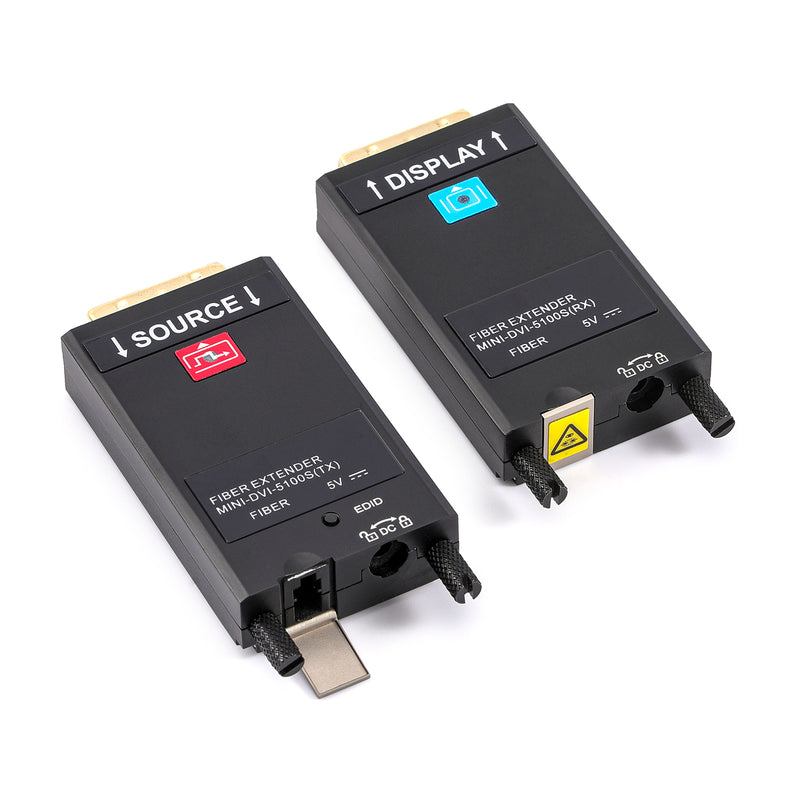

DVI to Fiber Optic Extender
Extend DVI via Fiber optic cable with the DVI to Fiber set. This compact, transmitter receiver set plugs directly into DVI ports avoiding the need for additional rack space or shelving with DVI to Fiber Set being ideal for portable applications. DVI to Fiber Set features integral LC ports – simply connect to a Fiber cable for transmission up to 300m with multi-mode Fiber or up to 1000m with single mode Fiber. Power from supplied plug-packs. Resolutions up to 3840x2160@60Hz are supported with EDID copy available via push-pin.
Technical Specifications:
- This compact, transmitter receiver set plugs directly into DVI ports avoiding the need for additional rack space or shelving with AV Master's DVI to Fiber extender being ideal for portable applications
- Integral LC ports – simply connect to a Fiber cable for transmission up to 300m with multi-mode Fiber or up to 2000m with single mode Fiber
- Resolutions up to 3840x2160@30Hz are supported with EDID copy available via push-pin.
- Plug directly into DVI ports, Easy Capture EDID, Support for 4K signals
- Strictly quality checked to ensure the quality!
Features
- DVI-D, DVI 1.0 at 10 gbps, DVI 24+1 male type
- HDR-10 BIT
- plug and play
EDID MANAGEMENT
- UHD 4:4:4 SUPPORTS 3840 X 2160 @ 60Hz
- wave length 1310-1550nm (single fiber)
- Supports up to 1 kms
- SUPPORTS SINGLE MODE AND MULTI MODE
Please download the brochure and technical specification sheet - Click here
