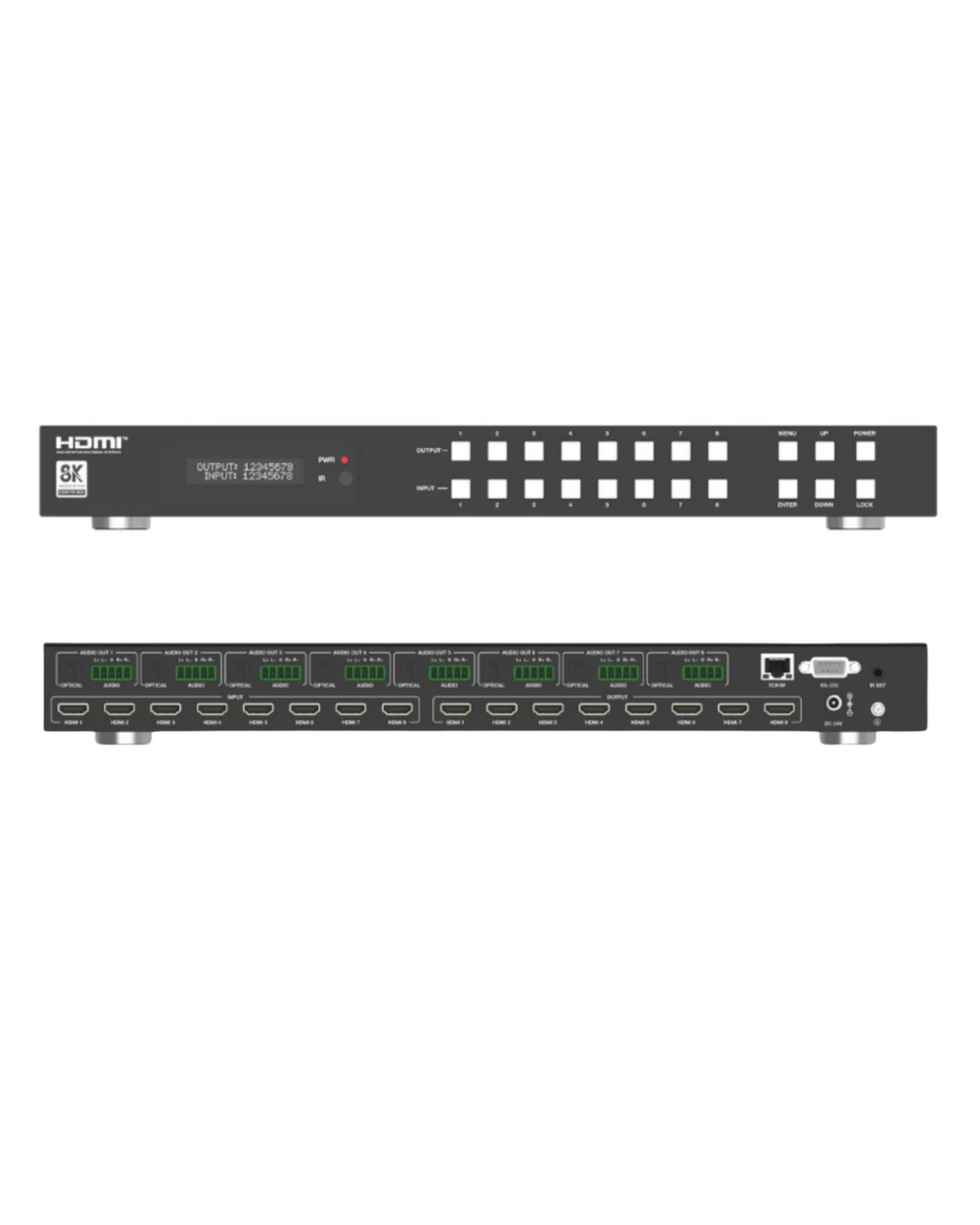

The 48Gbps 8K 8x8 HDMI Matrix supports the transmission of high resolution video (resolution up to 4K2K@120Hz 4:4:4 12bit and 8K4K@60Hz 4:2:0 12bit) and multi[1]channel digital audio (such as LPCM 7.1CH, Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) from 8 HDMI sources to 8 HDMI displays. Resolution downscaling and HDR conversion for each HDMI output are also supported. It works with Blue-Ray players, Set-Top boxes, Home Theater PCs, and game consoles which connect to an HDMI display, and can be controlled via front panel buttons, IR remote, RS-232, and Web GUI.
Technical Specifications
·HDMI 2.1 and HDCP 2.3 compliant
·8 × HDMI inputs can be independently routed to 8 × HDMI outputs
·Video resolution is up to 8K60Hz 4:2:0, 8K30Hz 4:4:4 and 4K120Hz 4:4:4
·Support 48Gbps video bandwidth
·HDR, HDR10, HDR10+, Dolby Vision pass-through
·Support 8K->4K or 8K/4K->1080p downscaling for each output port
·VRR, ALLM, QMS, QFT, SBTM are supported

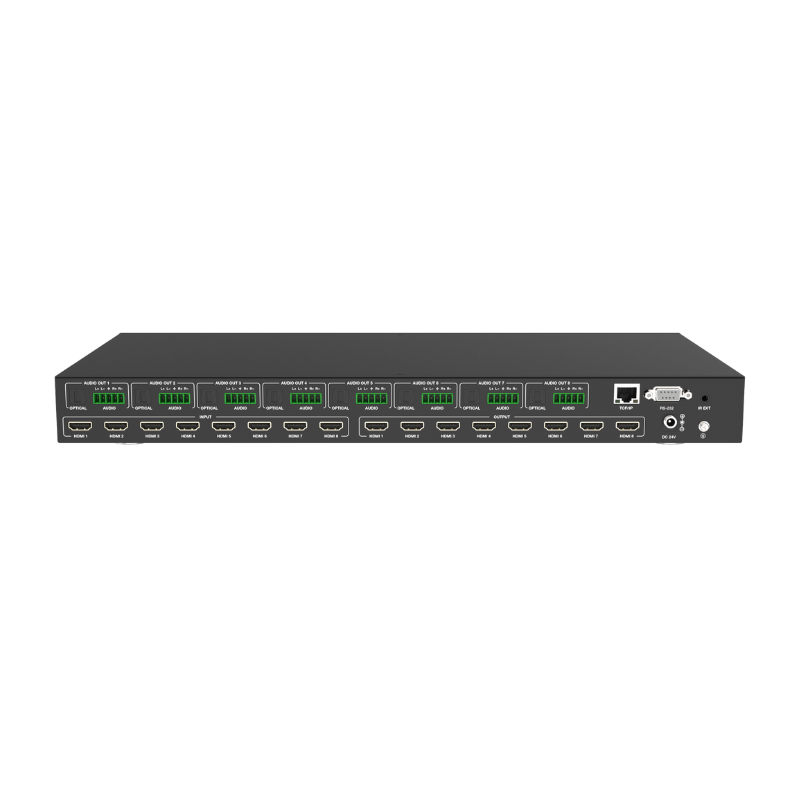

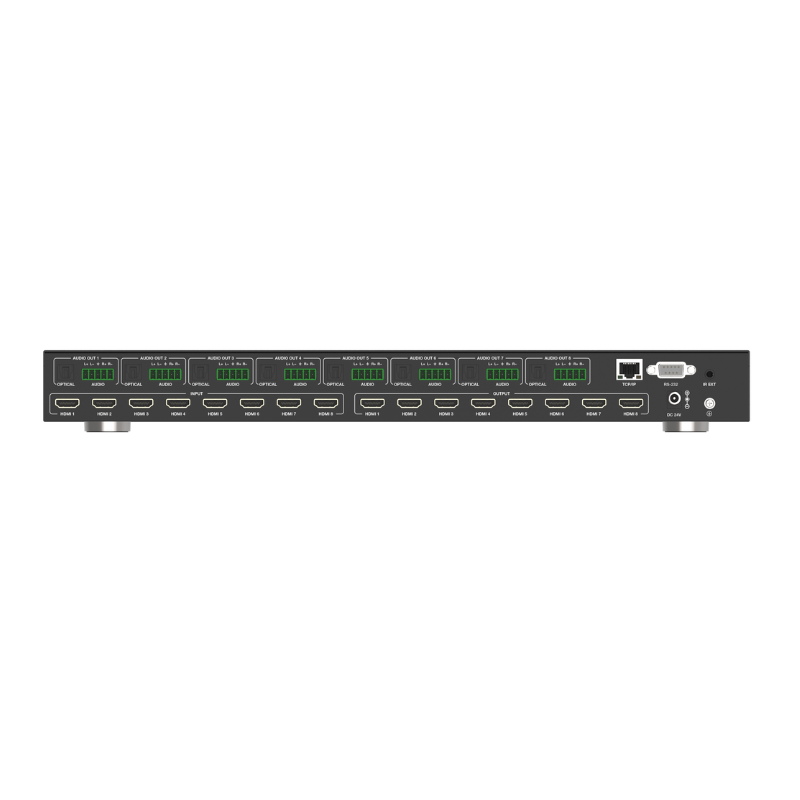

·Support optical audio and balanced analog audio output
·Advanced EDID management

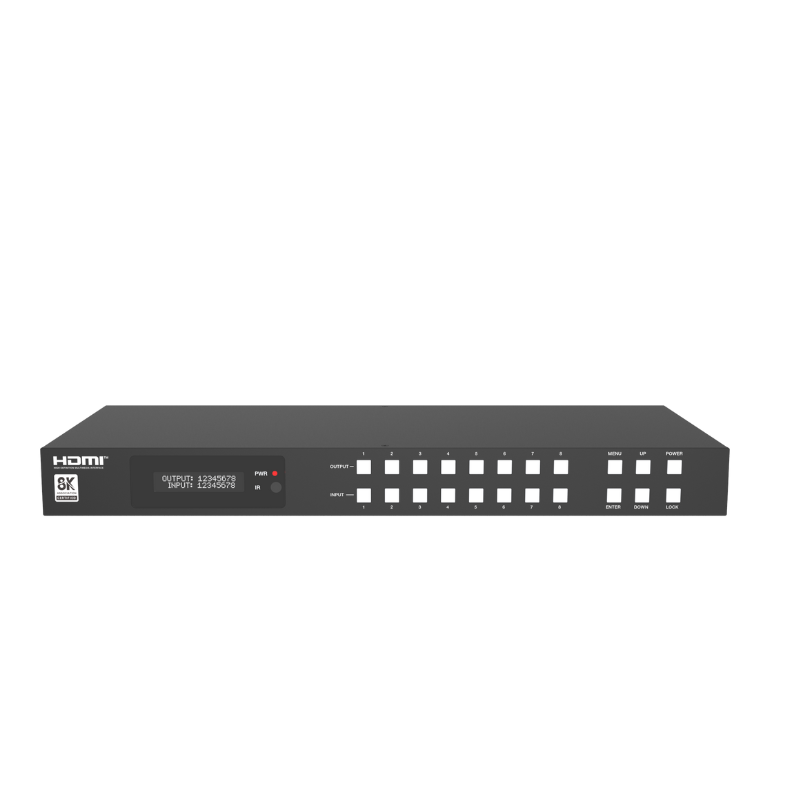

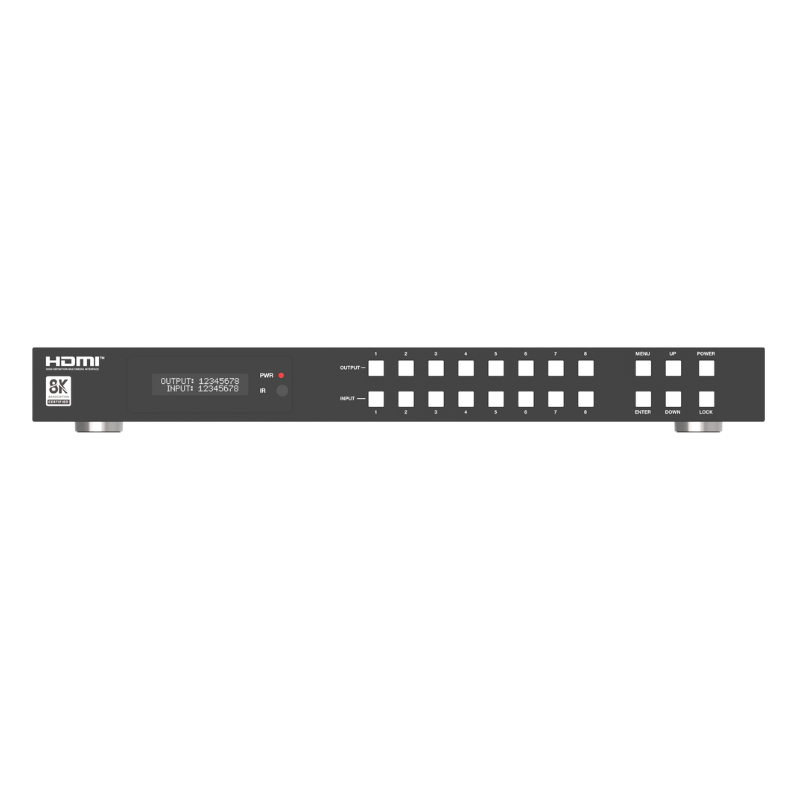

·Control via front panel buttons, IR remote, RS-232, and Web GUI
