Description

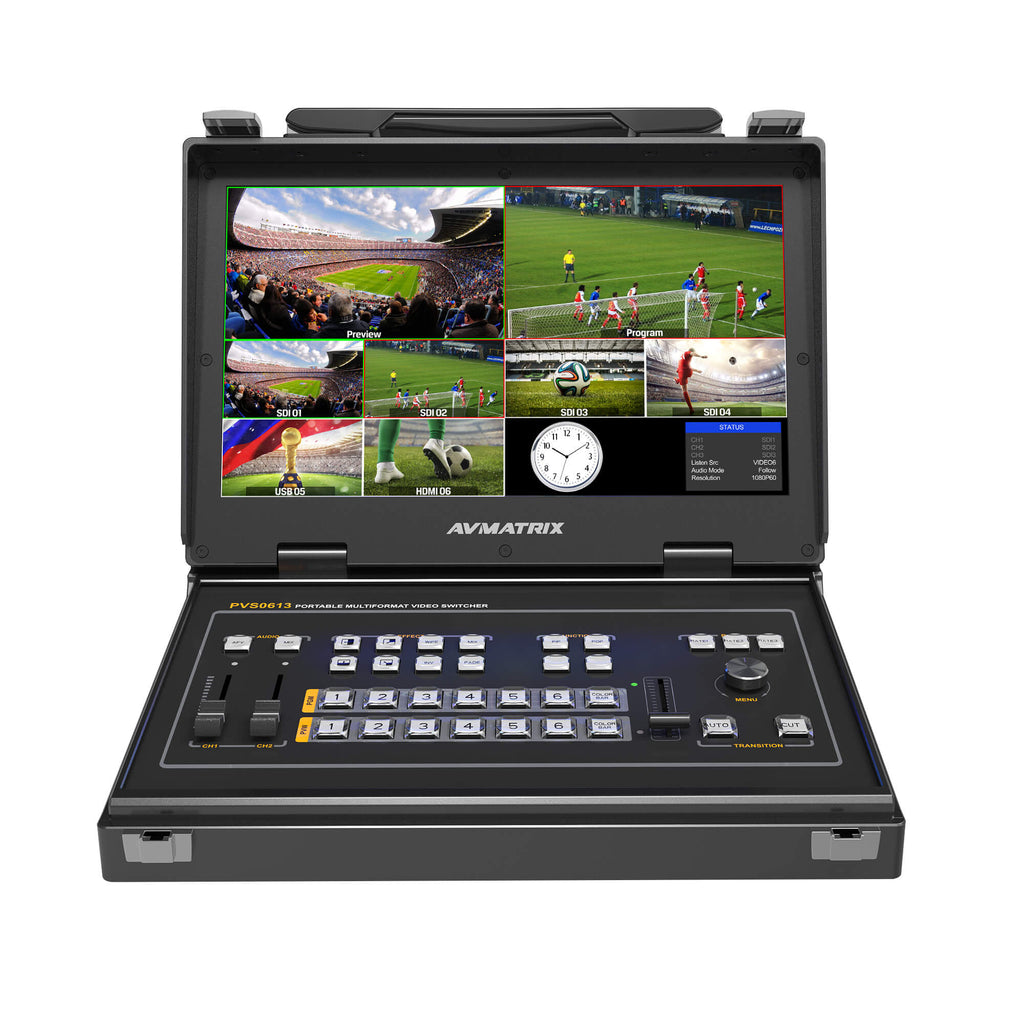

AV Matrix PVS0613 Portable 6CH SDI/HDMI Multi-format Video Switcher
Technical Specifications:
- Inputs: 4×SDI and 2×HDMI inputs
- Outputs: 2×SDI &1×HDMI PGM, 1×SDI PVW, 1×SDI & HDMI multiview
- 13.3 inch FHD LCD monitor
- Portable design, metal case
- T-Bar/ AUTO/ CUT transitions and MIX/ FADE/ WIPE effects
- PiP mode, both size and position is adjustable
- Audio mixer: 3.5mm stereo/ RCA audio & SDI/ HDMI embedded audio
- GPIO interface for live tally system
- FTB for emergency situation
