Description

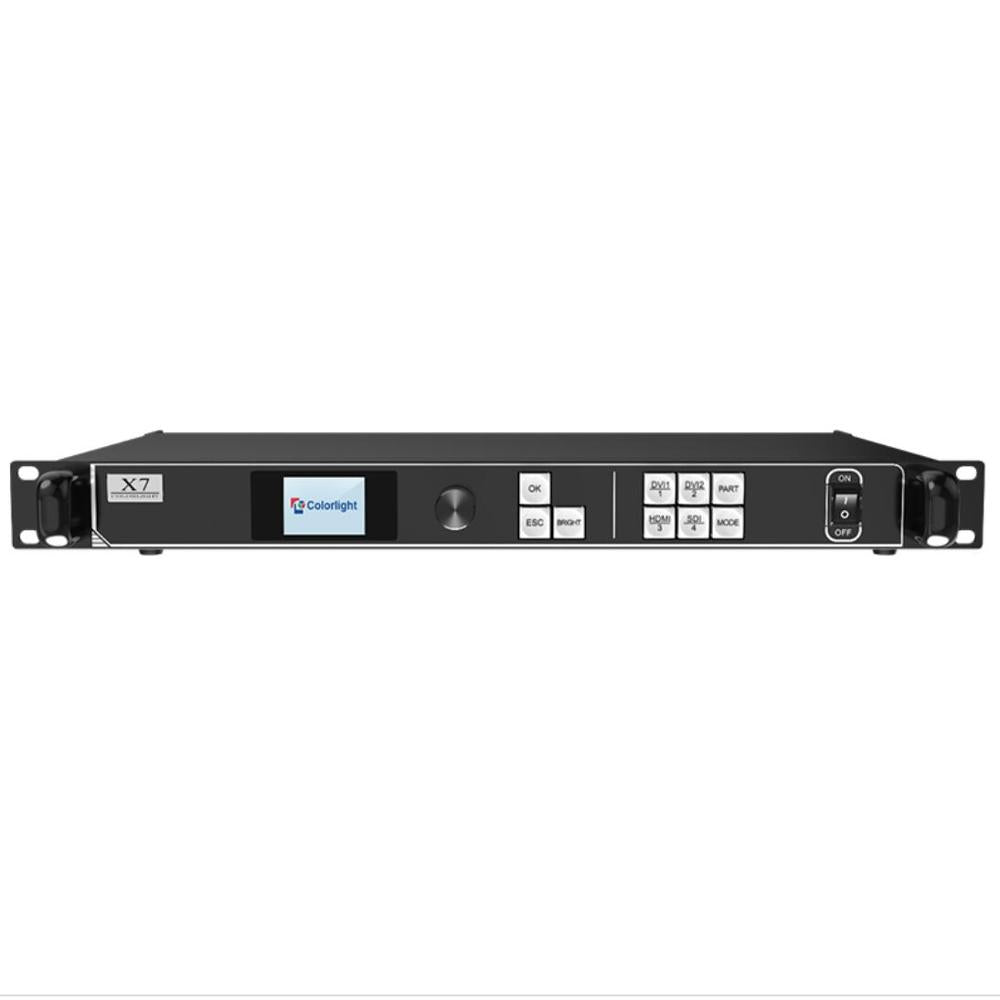

Colorlight X7 LED Controller is a professional control system and video processing equipment specially designed for LED engineering applications.
It equips various video signal interfaces, supports high-definition digital ports (SDI, HDMI, DVI), and seamless switching between signals can be achieved.
It supports broadcast quality scaling and multi-pictures display.
Technical Specifications:

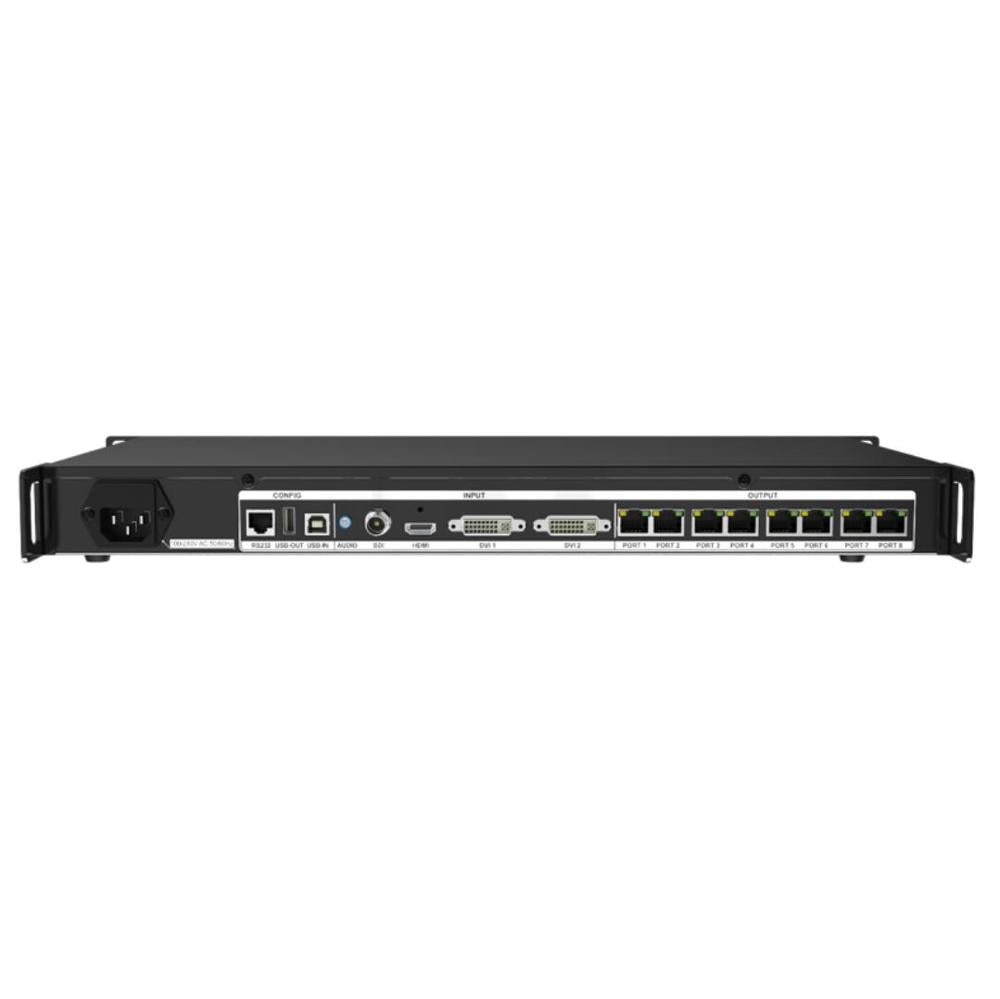

- Supports various digital signal ports, including 1×SDI, 1×HDMI, 2×DVI
- Supports input resolution up to 1920×1200@60Hz
- Loading capacity: 5.2 million pixels, Maximum width: 8192 pixels, Maximum height: 4096 pixels
- Supports arbitrary switching of video sources
- Supports arbitrary switching of video sources
- Supports three-picture display, the location and size can be adjusted freely
- Supports 16 kinds of preset modes, the saved preset parameters can be loaded at any time according to needs
- Supports HDCP1.4
- Dual USB2.0 for high speed configuration and easy cascading among controllers
- Supports adjustment of brightness, chromaticity, contrast ratio, tone, and saturation
- Supports improved gray-scale performance at low brightness
- Compatible with all receiving cards, multifunction cards, and optical fiber converters of Colorlight
