Description

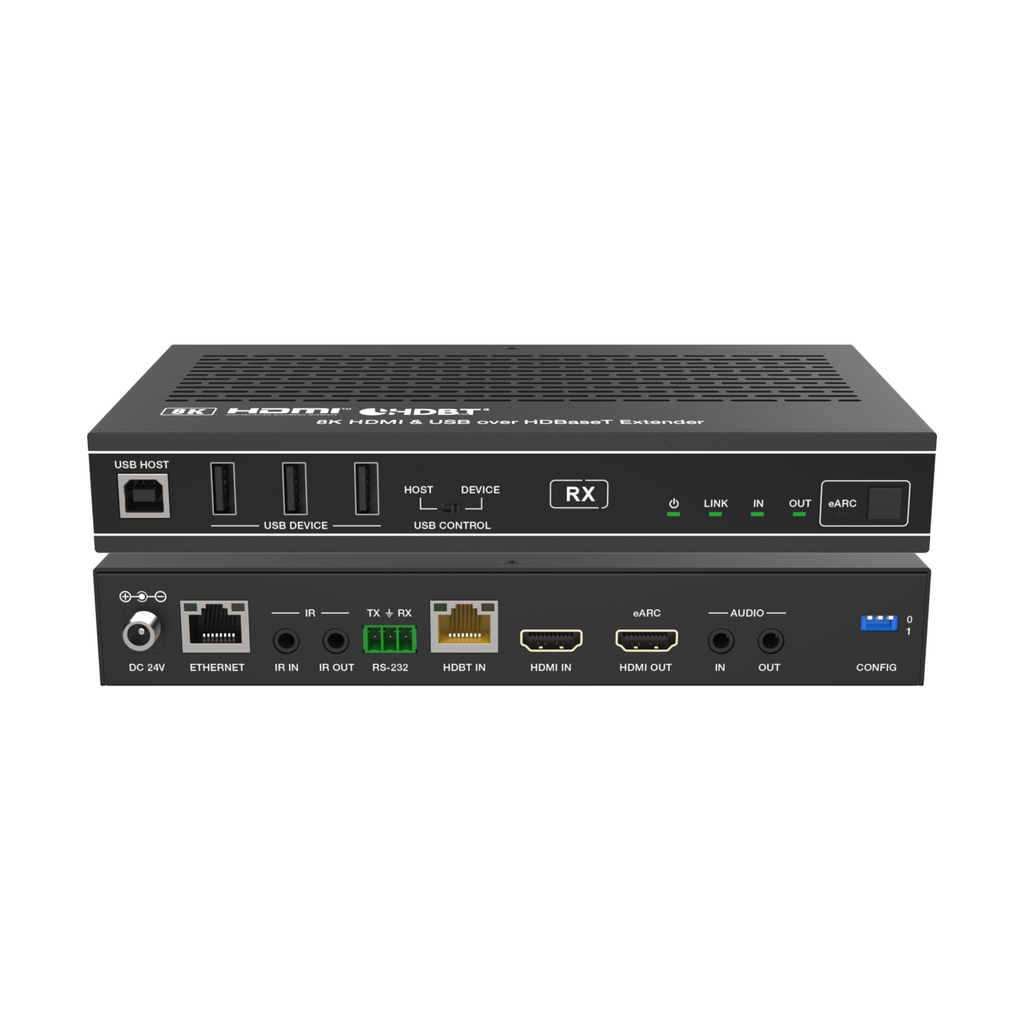

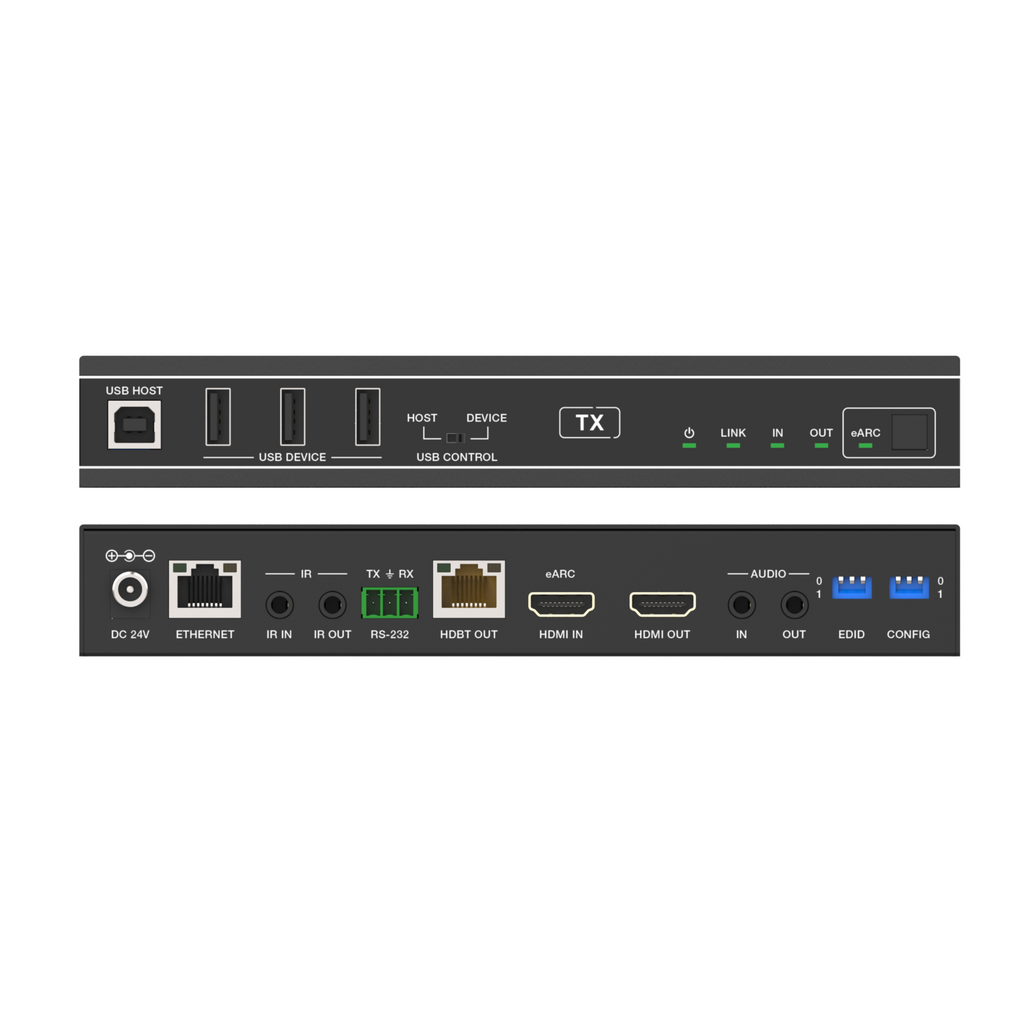

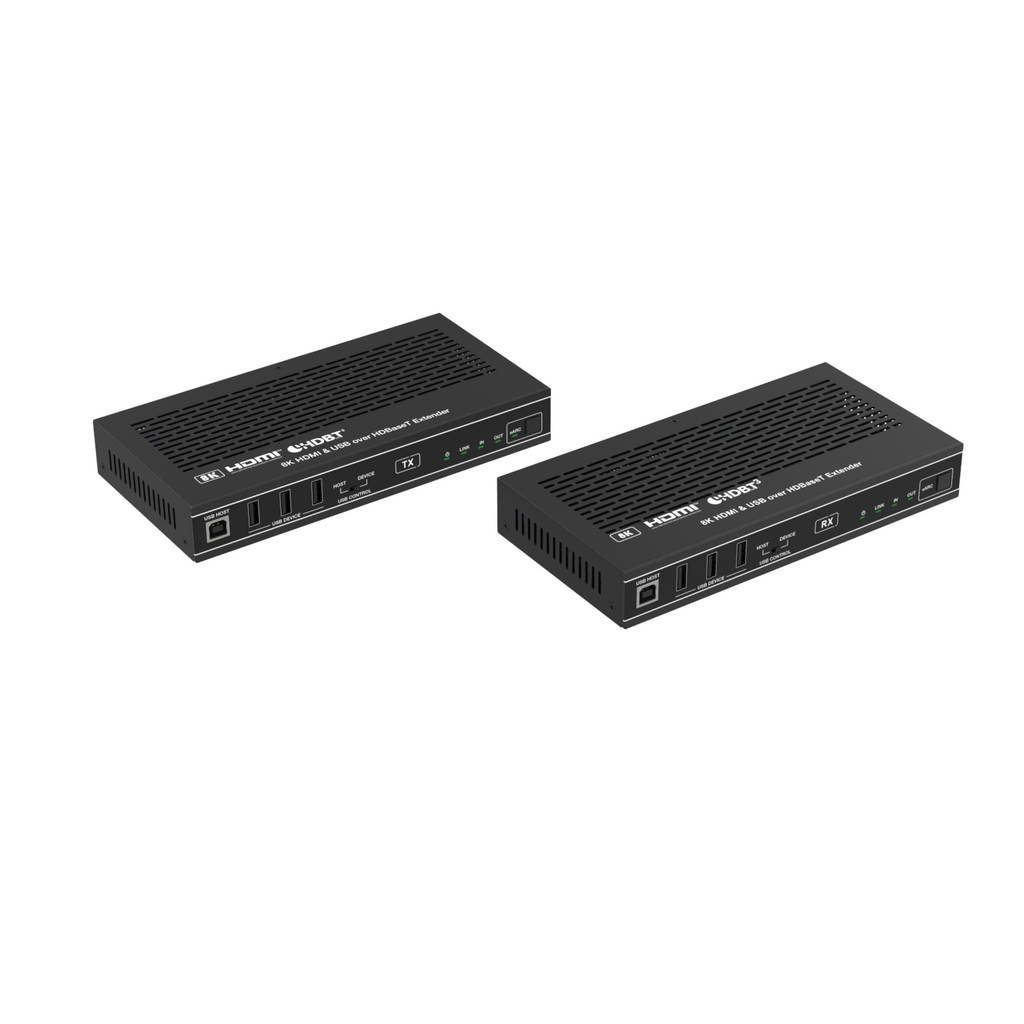

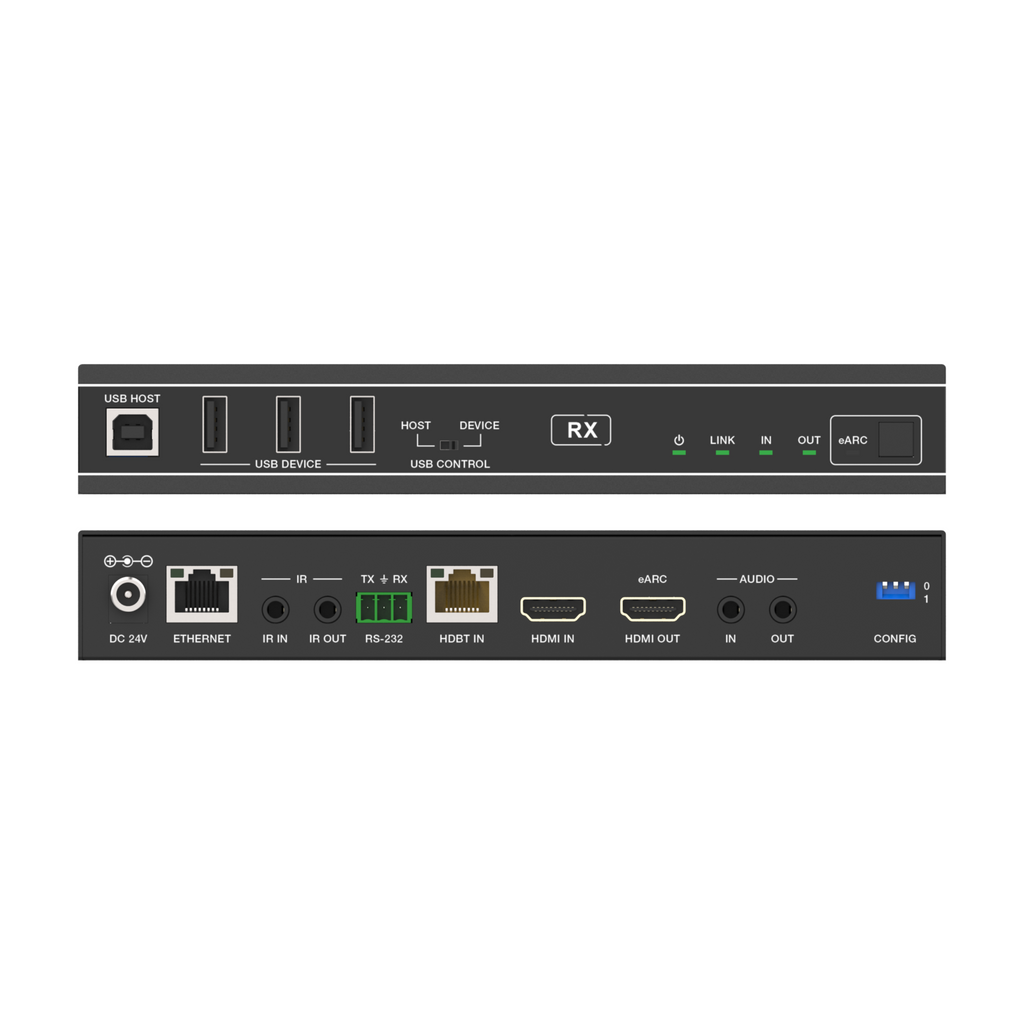

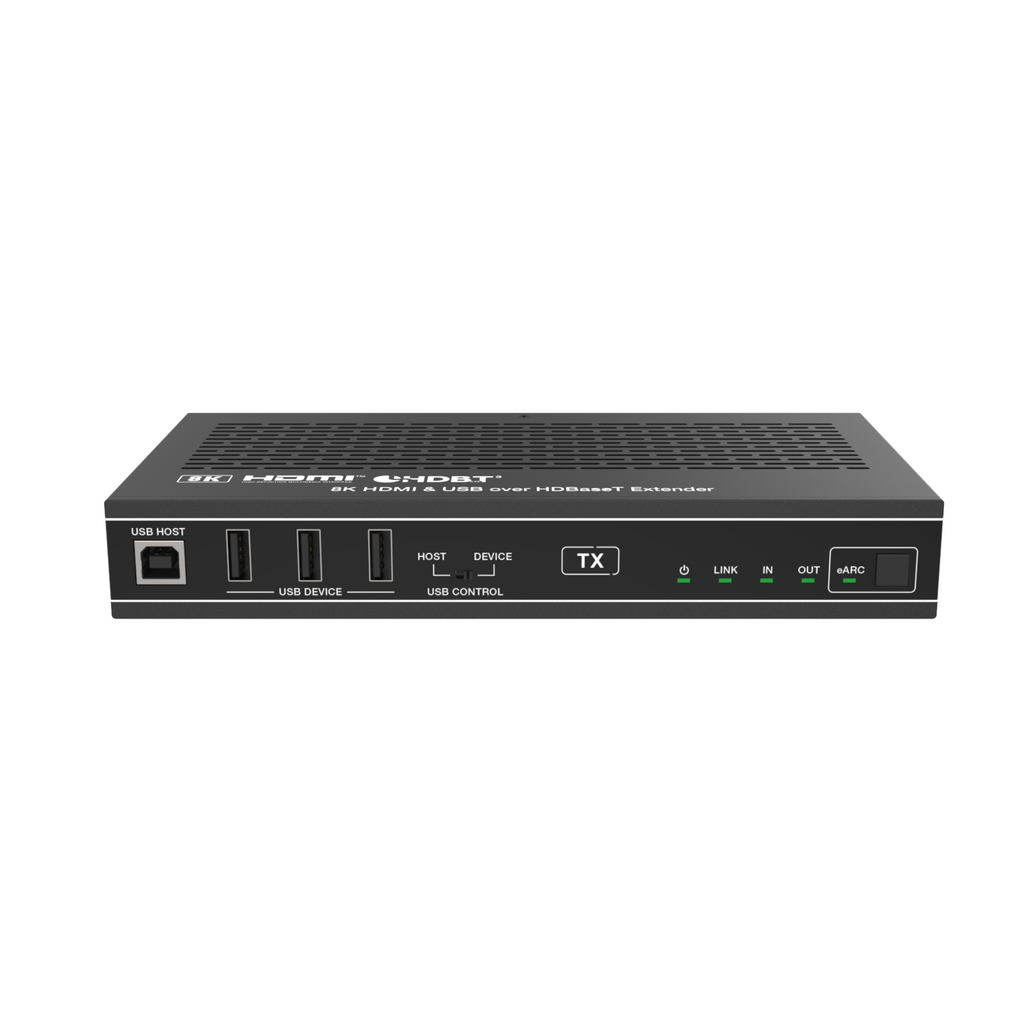

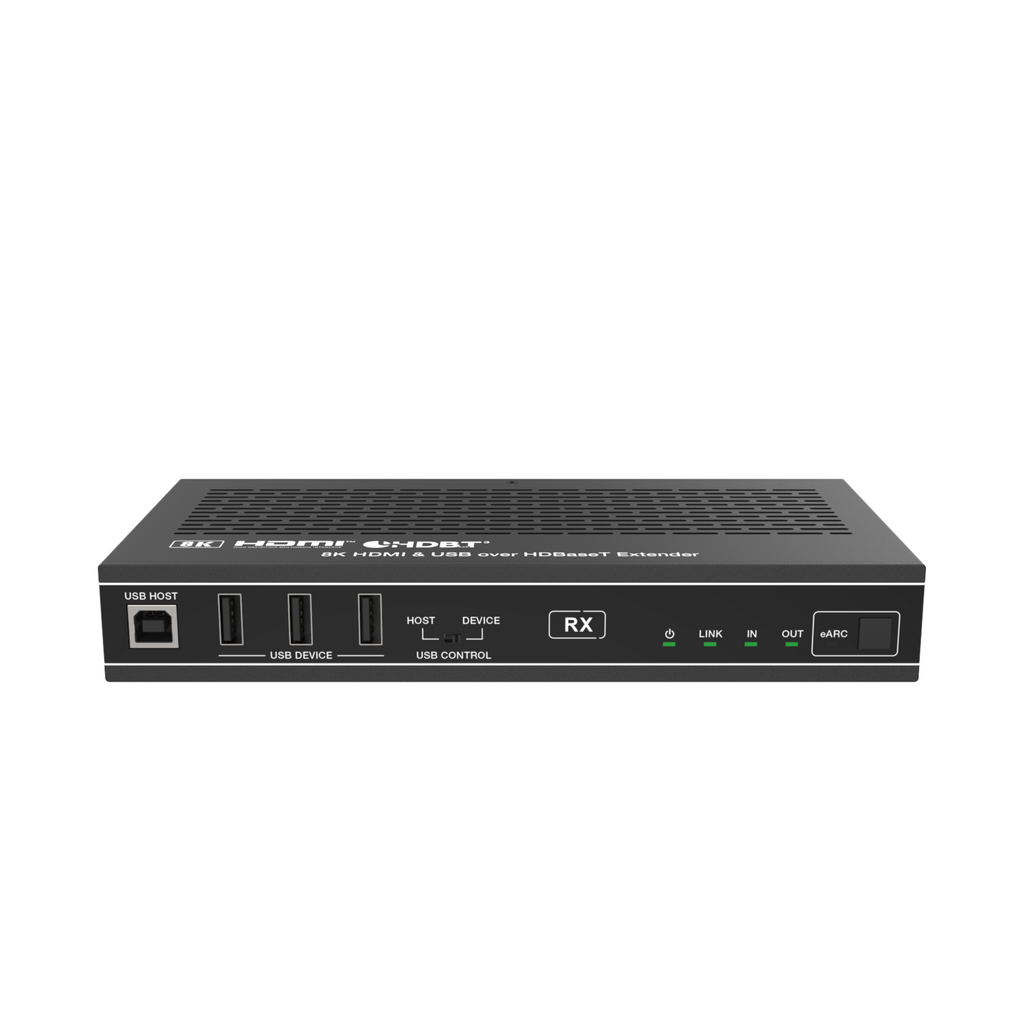

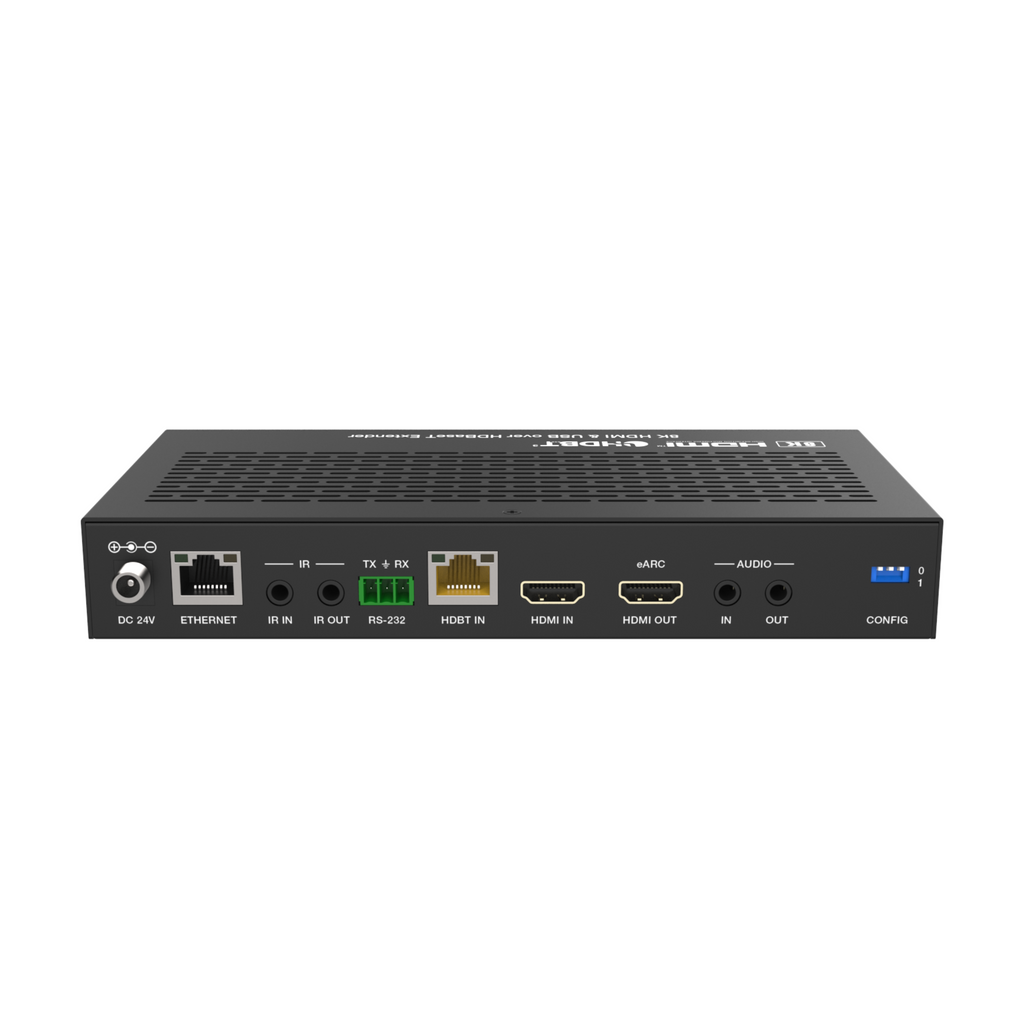

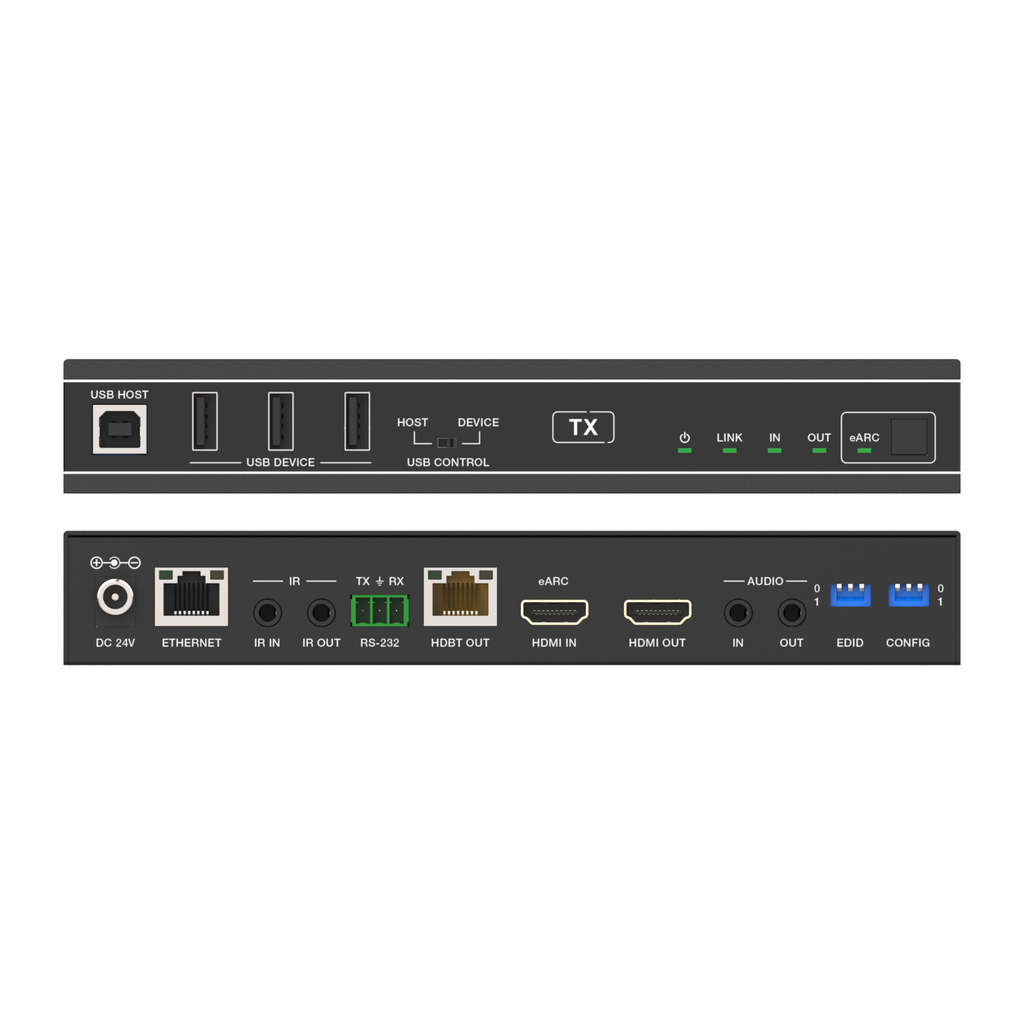

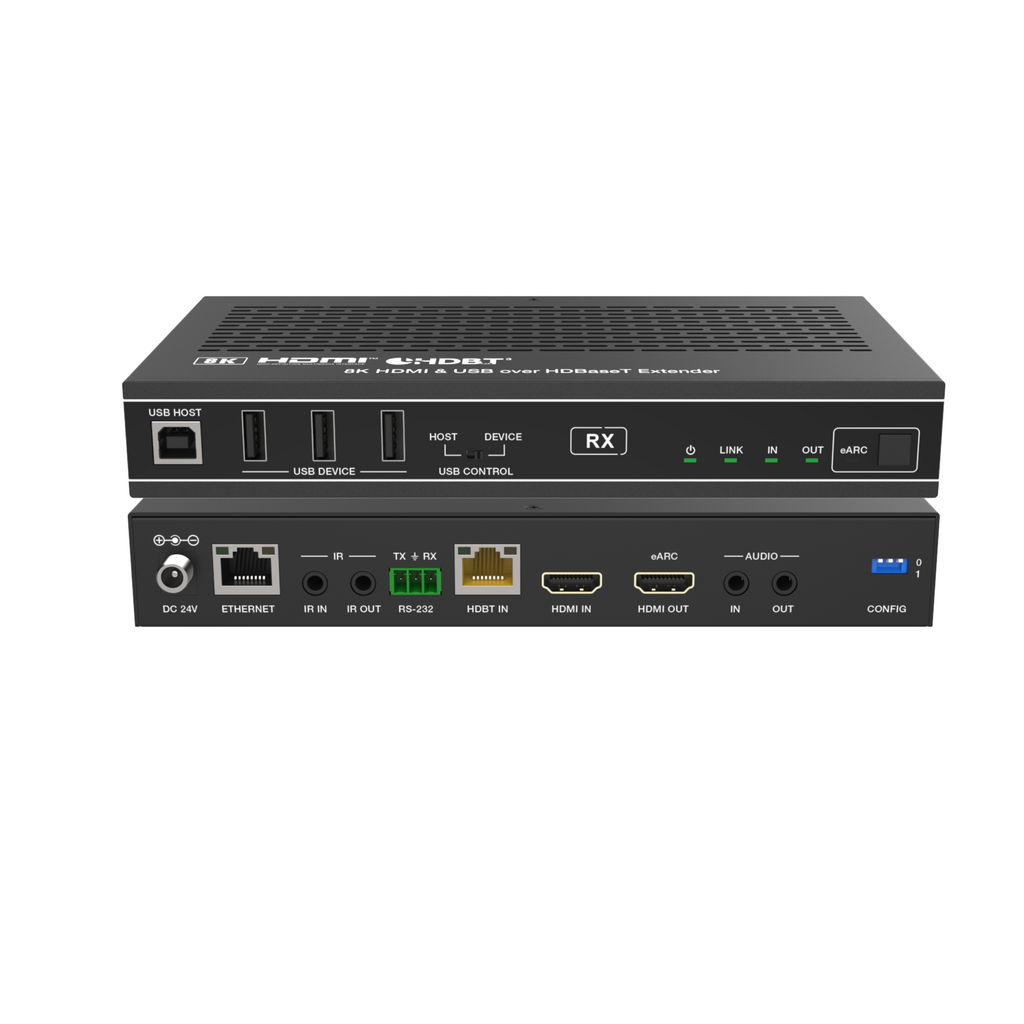

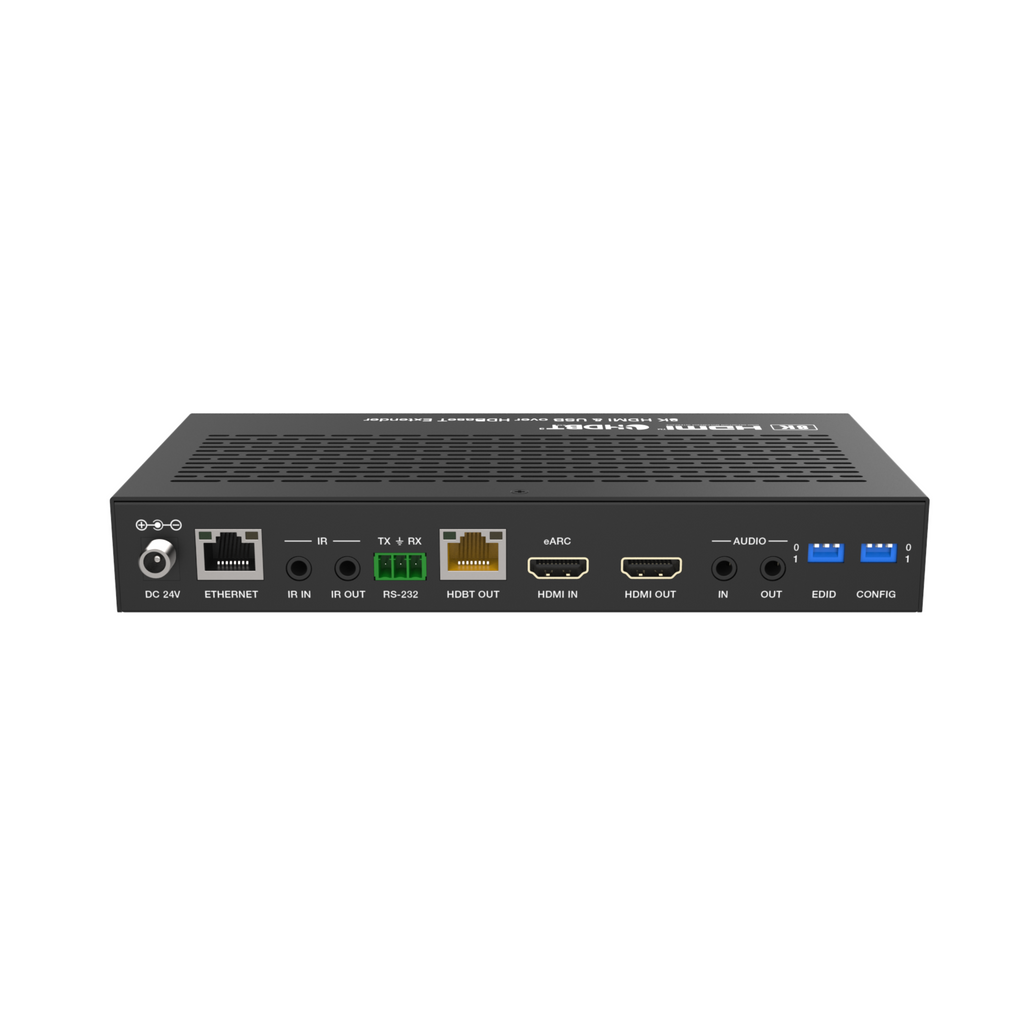

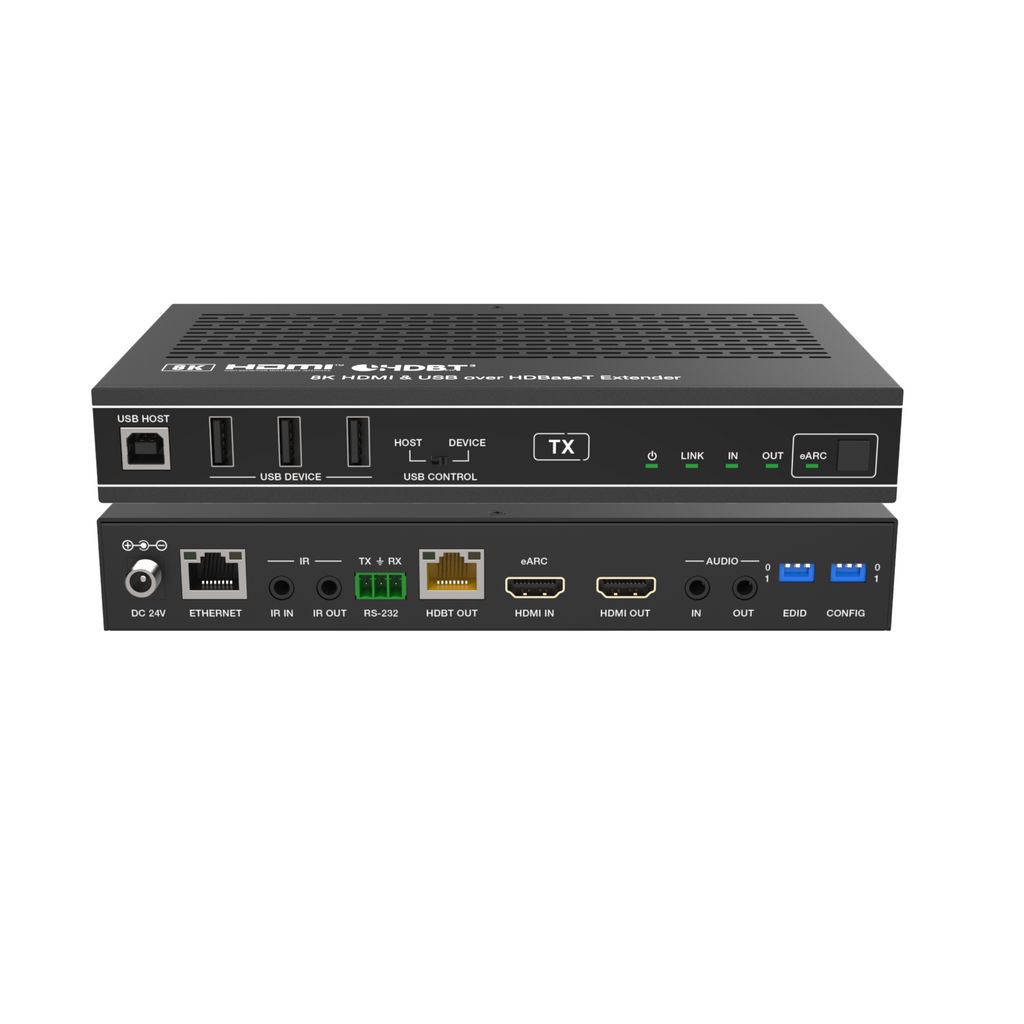

This 8K HDMI & USB over HDBaseT Extender can extend uncompressed HD/UHD video and audio signals, eARC/ARC, RS-232, bi-directional IR, 1GbE Ethernet and USB2.0 signals up to 90m/295ft via a single CAT 6A/7 cable. Video resolution is up to 8K@30 4:4:4 10bit, 4K@120Hz 4:4:4 10bit, 4K60Hz 4:4:4. It supports eARC/ARC from RX's HDMI output pass-through to TX's HDMI input or de-embedding to TX's HDMI output port. Besides, it supports USB 2.0 signal transmission (Host/Device is configurable) and bi[1]directional POC function. The Extender offers the most convenient solution for HDMI extension via a single CAT cable with long distance capability, and is the perfect solution for home/commercial application.
Technical Specifications
· HDMI 2.1, HDCP 2.3 and HDBaseT 3.0 compliant
· Support up to 40Gbps FRL and 18Gbps TMDS video bandwidth
· Video resolution is up to 8K@30 4:4:4 10bit, 4K@120Hz 4:4:4 10bit
· Support all industry standard video resolutions including VGA-WUXGA and 480i-8K30
· VRR, FVA, ALLM support
· HDR, HDR10, HDR10+, Dolby Vision and HLG pass-through
· HDMI audio formats: Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio
· Signal transmission distance can be extended up to 90m/295ft via a single CAT 6A/7 cable
· Support eARC/ARC from RX to TX sound system
· Advanced EDID management through EDID DIP switch
· With CONFIG DIP switch, allowing the RS-232 serial port to feature different functions
· Support USB2.0 transmission (with speeds up to 350Mbps), Host/Device is configurable
· Bi-directional Ethernet (1Gb), analog audio, IR & RS-232 signal pass-through
· HDMI re-clocking on the HDBaseT™ Receiver to help solve HDMI HDCP, compatibility and handshaking issues
· Bi-directional 24V POC function
