Description

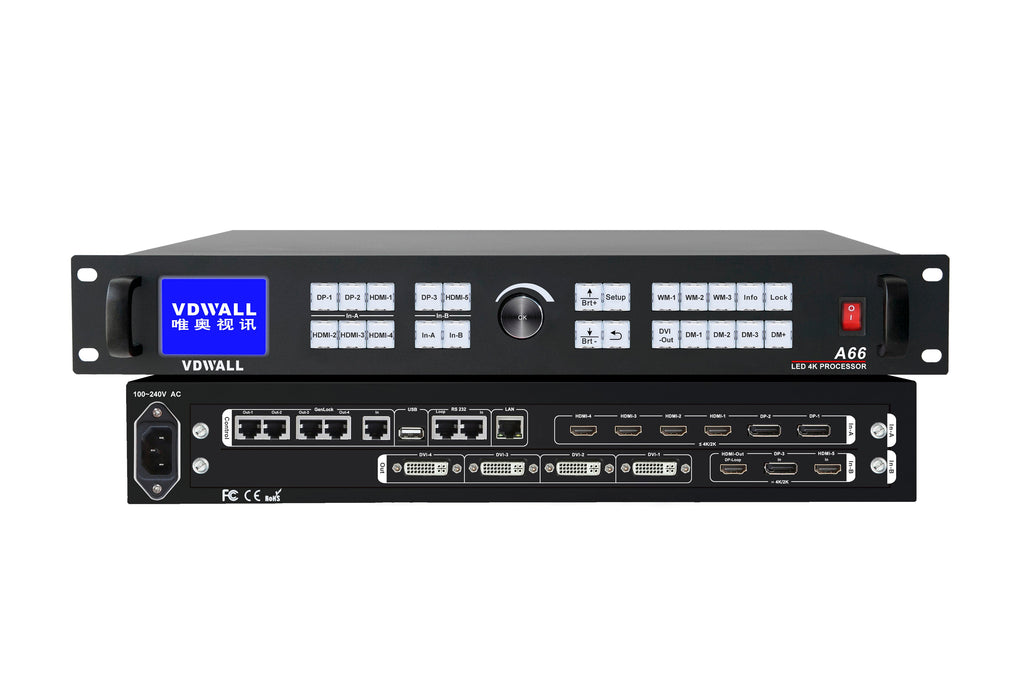

VD Wall 4k Processor A66 provides multi-level synchronized cascading via Genlock function 4 A66 cascading extend pixel to pixel display up to 8K4K@60HZ
Versatile control method, including front panel button control, RS232, USB, Lan control
Genuine 4K@60Hz processor
Prevalent in high-end occasions, such as stage performance, exhibition, conven-
tionhall, school auditorium, church, advertising, monitoring and control center etc.
Technical Specifications:
Inputs
- 8 UHD input consist of HDMI2.0/1.4*5, DP 1.2*3
- Maximum input resolution up to 4096*2160@60Hz
- Support HDCP1.4/HDCP2.2
Output
- 4ch DVI/HDMI output, synchronized splicing, drive LED with 9.2 million pixels
- Each output, any input signal crop, freely adjust size and position of output image
- User-defined output resolution
- Auto calculation mosaic, fast mosaic
- Each output can adjust color, RGB and bias independently
- 13 preset display modes, display mode duplicate, display mode backup
Multi-Image process
- Support maximum 4*4K2K60Hz images display simultaneously
- 6 preset dual images display mode
- One key freely switches among single image, dual images and quad images mode
Image processing
- Real 10-bit image processing, color more vivid and natural
