Description

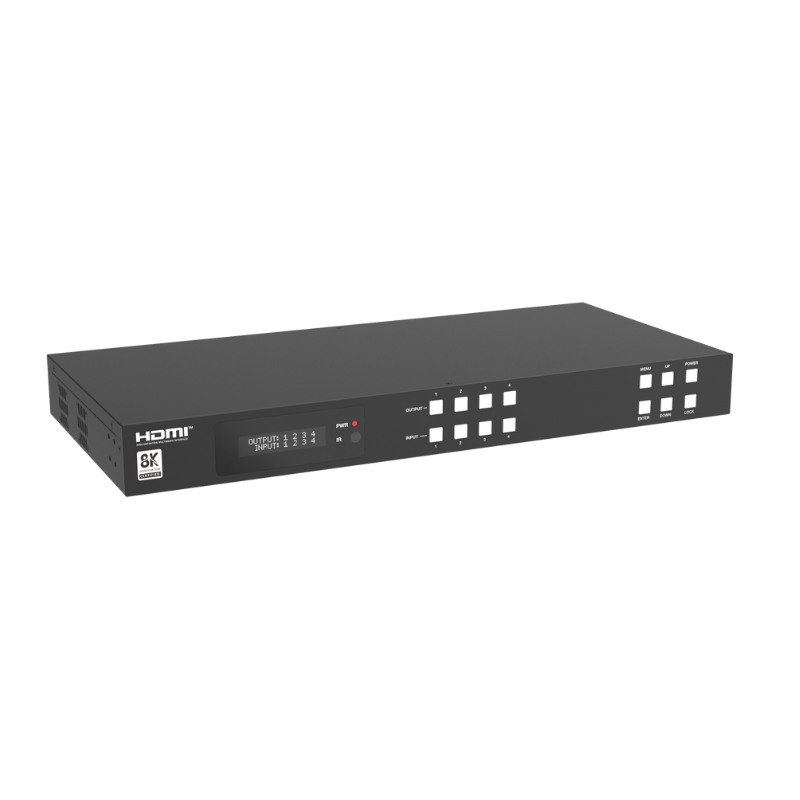

The 48Gbps 8K 4x4 HDMI Matrix supports the transmission of high-resolution video (up to 4K2K@120Hz 4:4:4 12bit and 8K4K@60Hz 4:2:0 12bit) and multi-channel digital audio from 4 HDMI sources to 4 HDMI displays. Resolution downscaling and HDR conversion for each HDMI output are also supported. It works with Blue-Ray players, Set-Top boxes, Home Theater PCs, and game consoles which connect to an HDMI display, and can be controlled via front panel buttons, IR remote, RS-232, and Web GUI.
Technical Specifications
· HDMI 2.1 and HDCP 2.3 compliant
· 4 × HDMI inputs can be independently routed to 4 × HDMI outputs
· Video resolution is up to 8K60Hz 4:2:0, 8K30Hz 4:4:4 and 4K120Hz 4:4:4
· Support 48Gbps video bandwidth
· HDR, HDR10, HDR10+, Dolby Vision pass-through
· Support 8K->4K or 8K/4K->1080p downscaling for each output port
· VRR, ALLM, QMS, QFT, and SBTM are supported

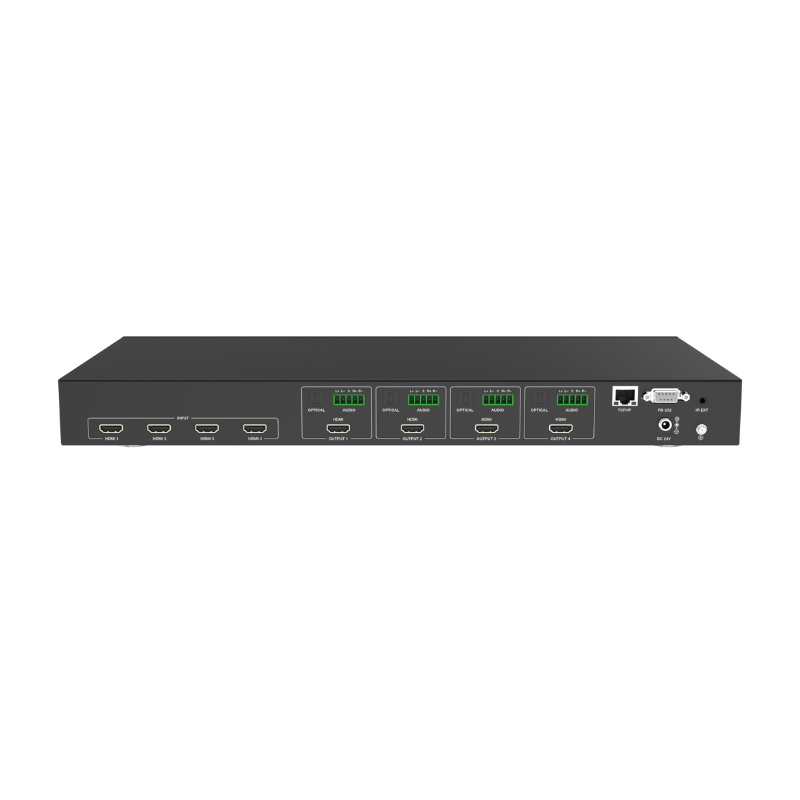

· Support optical audio and balanced analog audio output
· Advanced EDID management

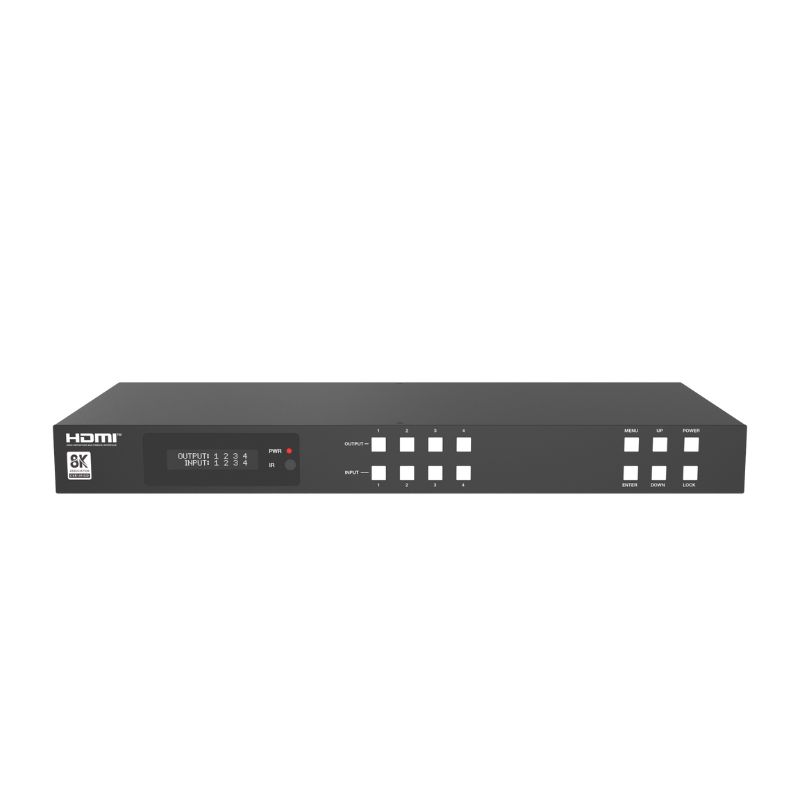

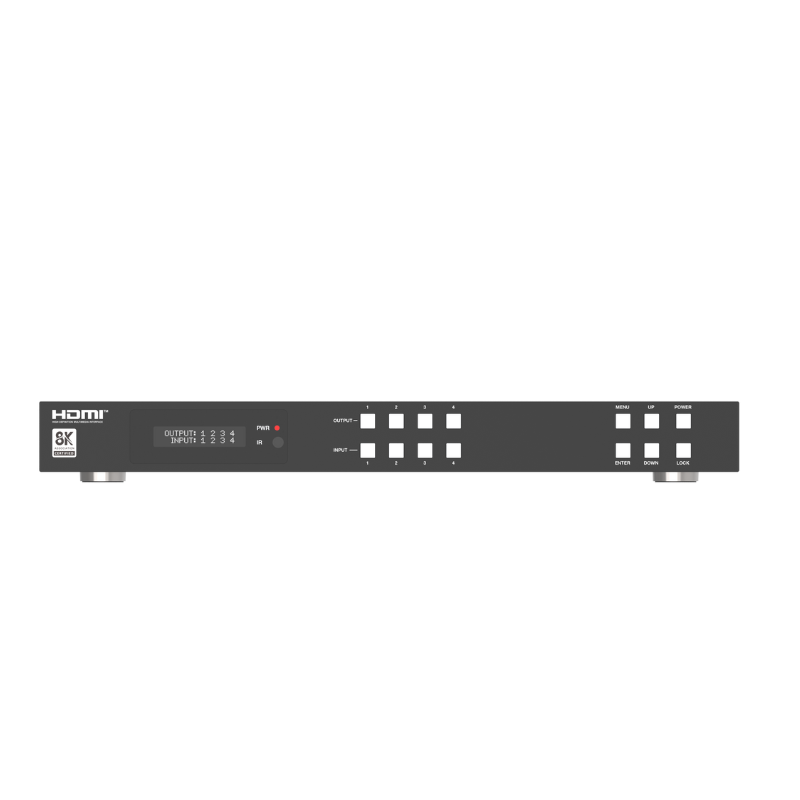

· Control via front panel buttons, IR remote, RS-232, and Web GUI
Download the technical specification sheet here - LINK
