HDMI over HDBaseT Extender with Bi-directional IR (150M)

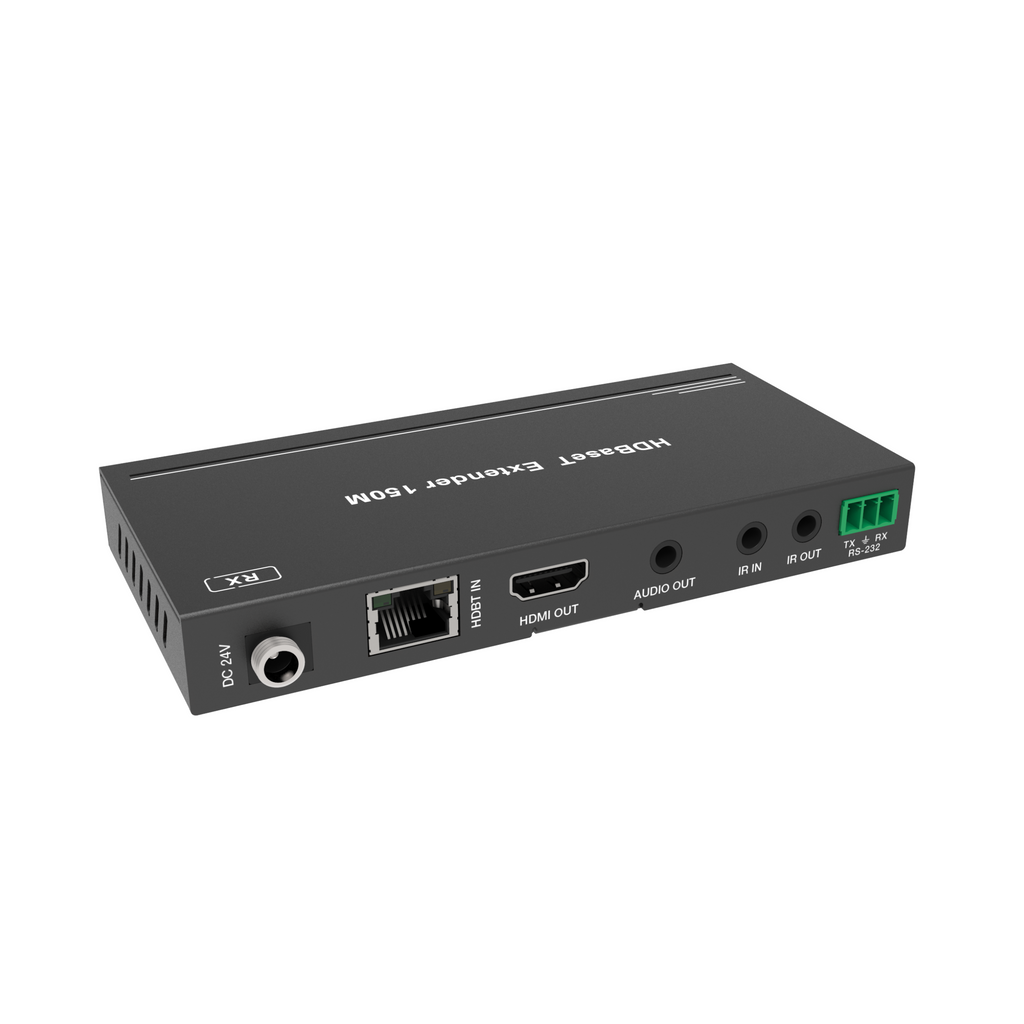

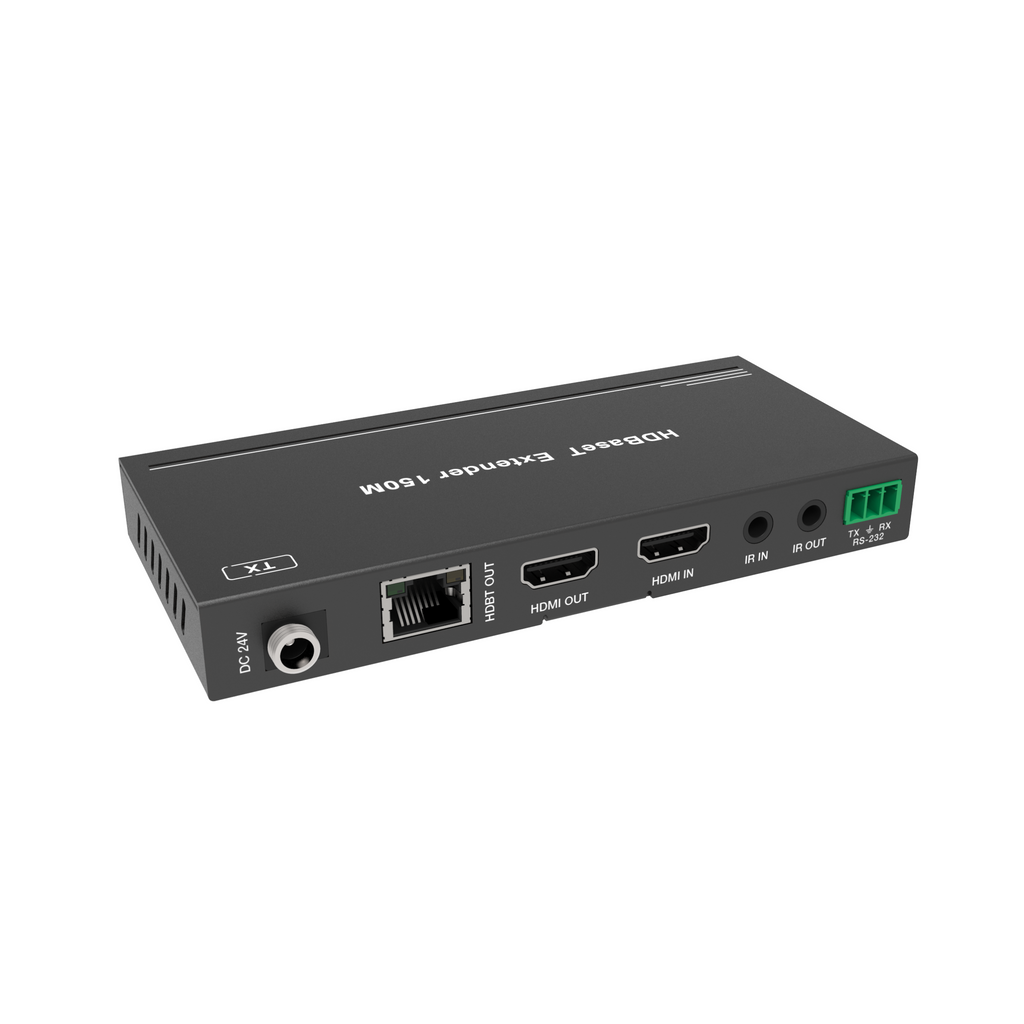

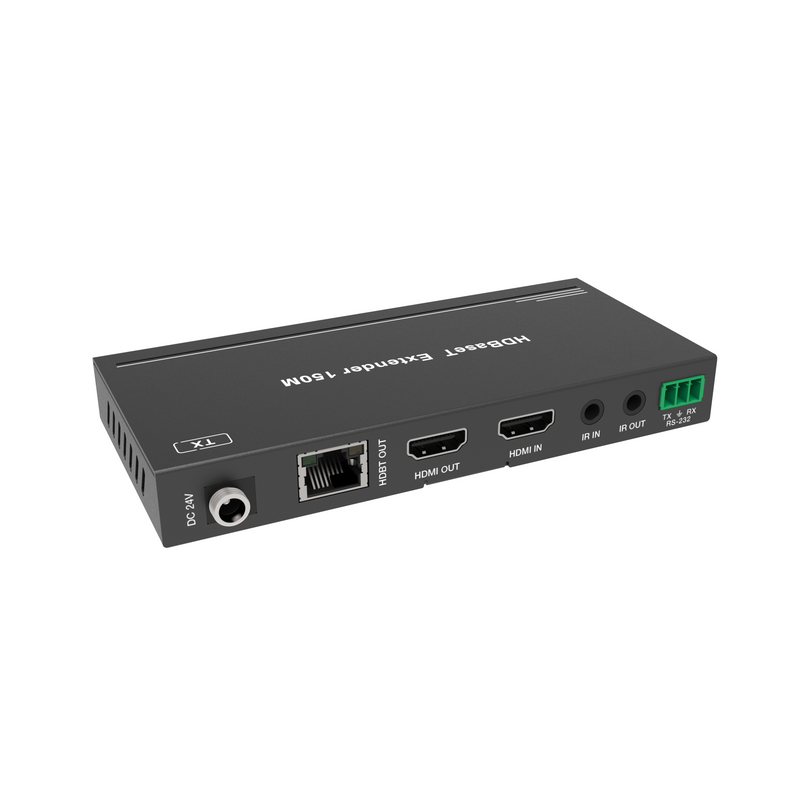

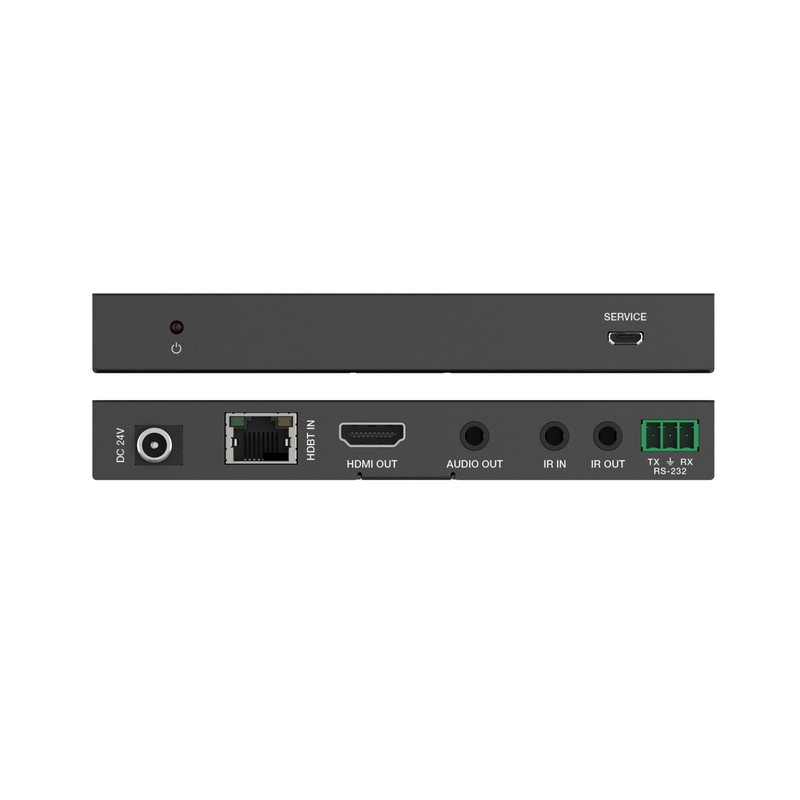

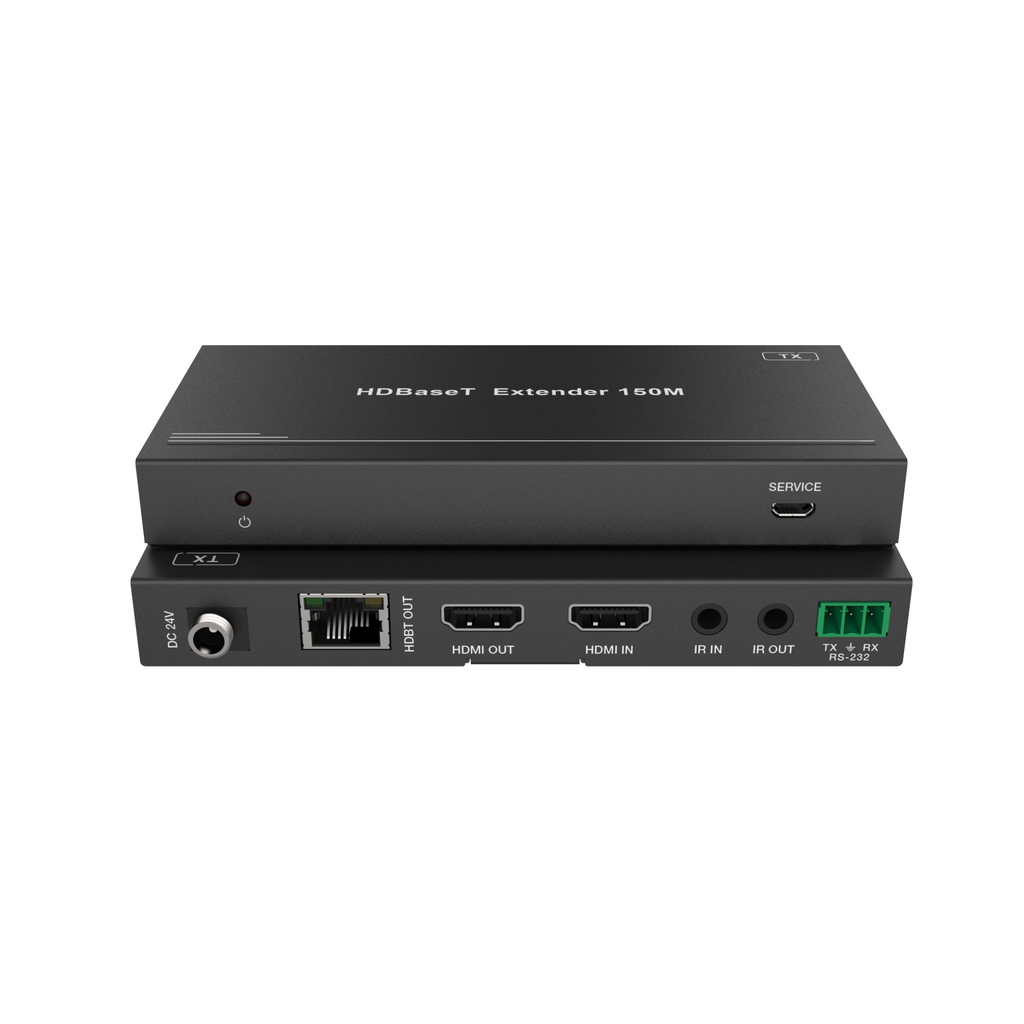

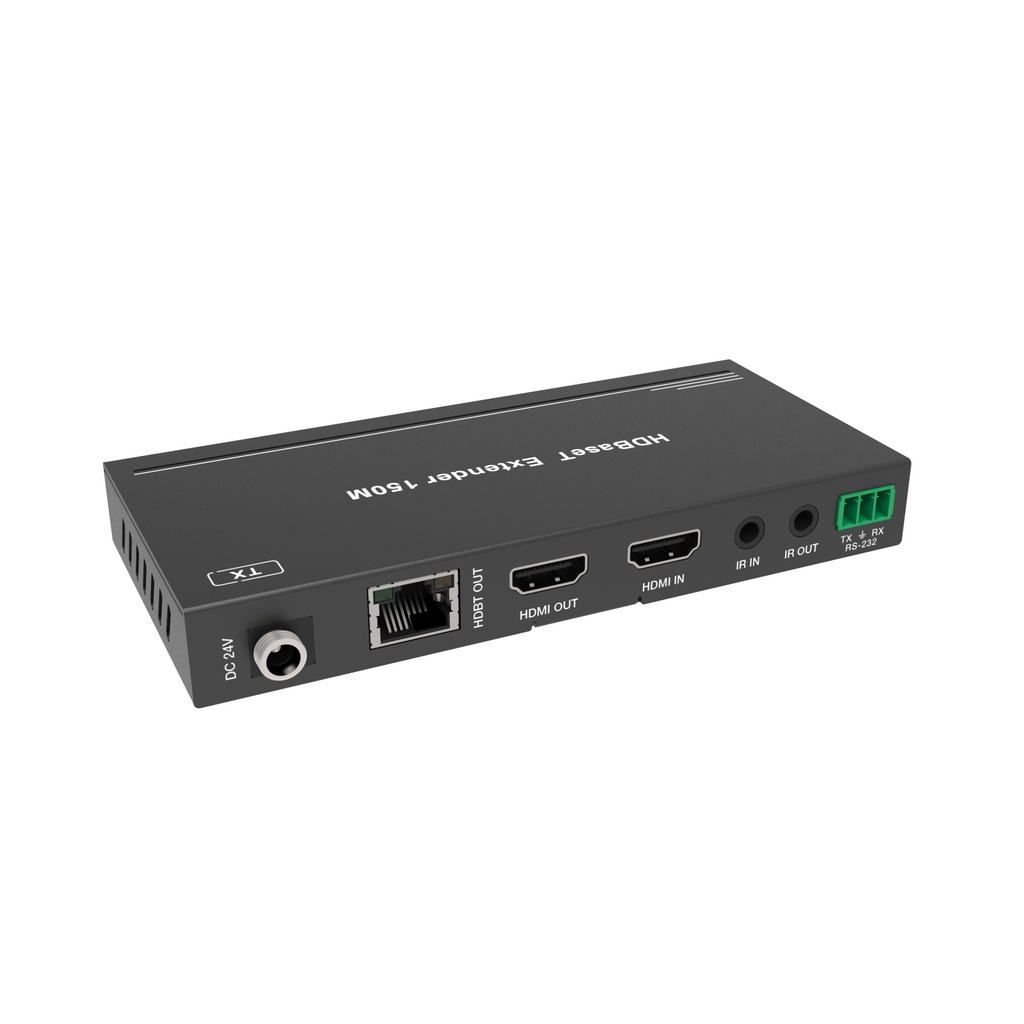

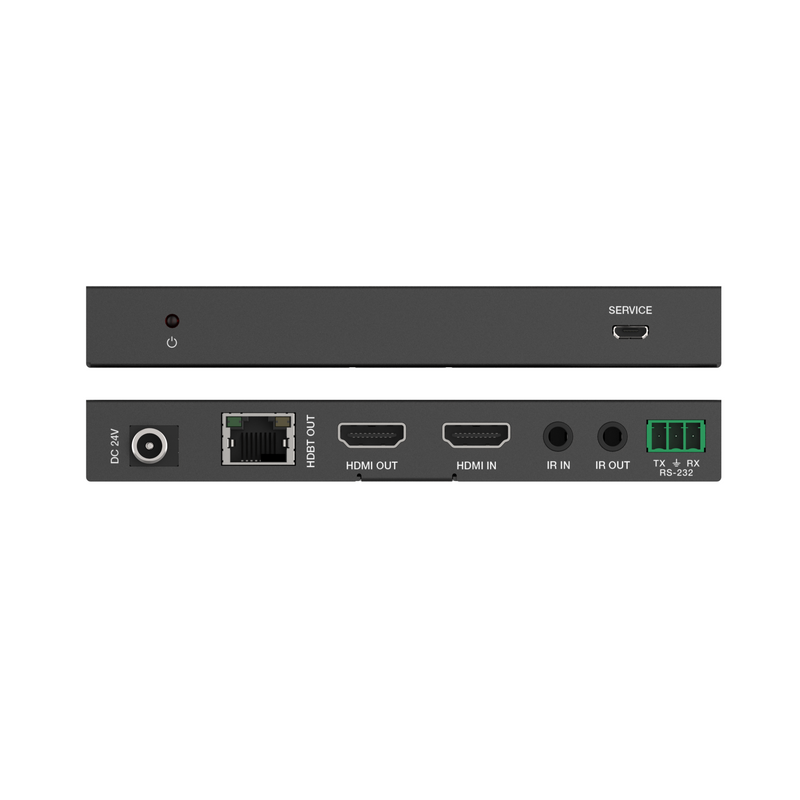

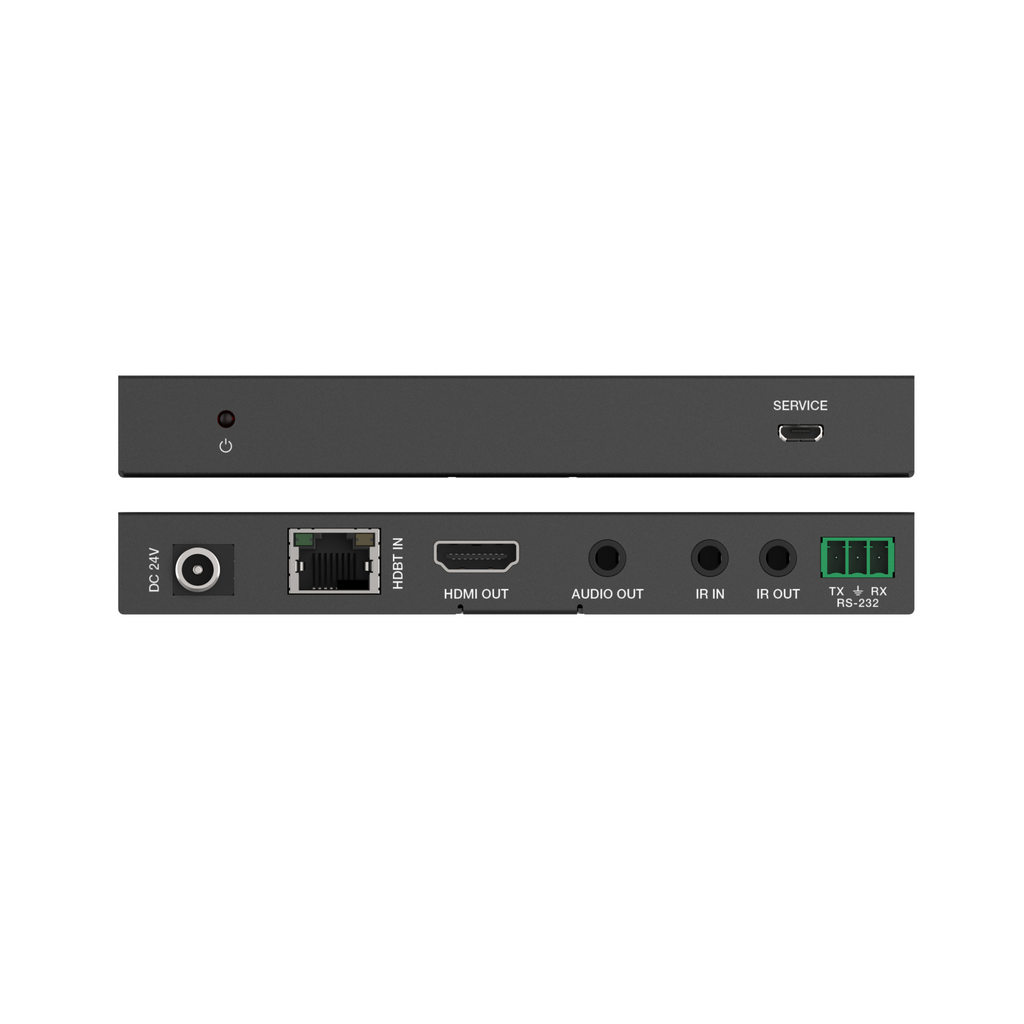

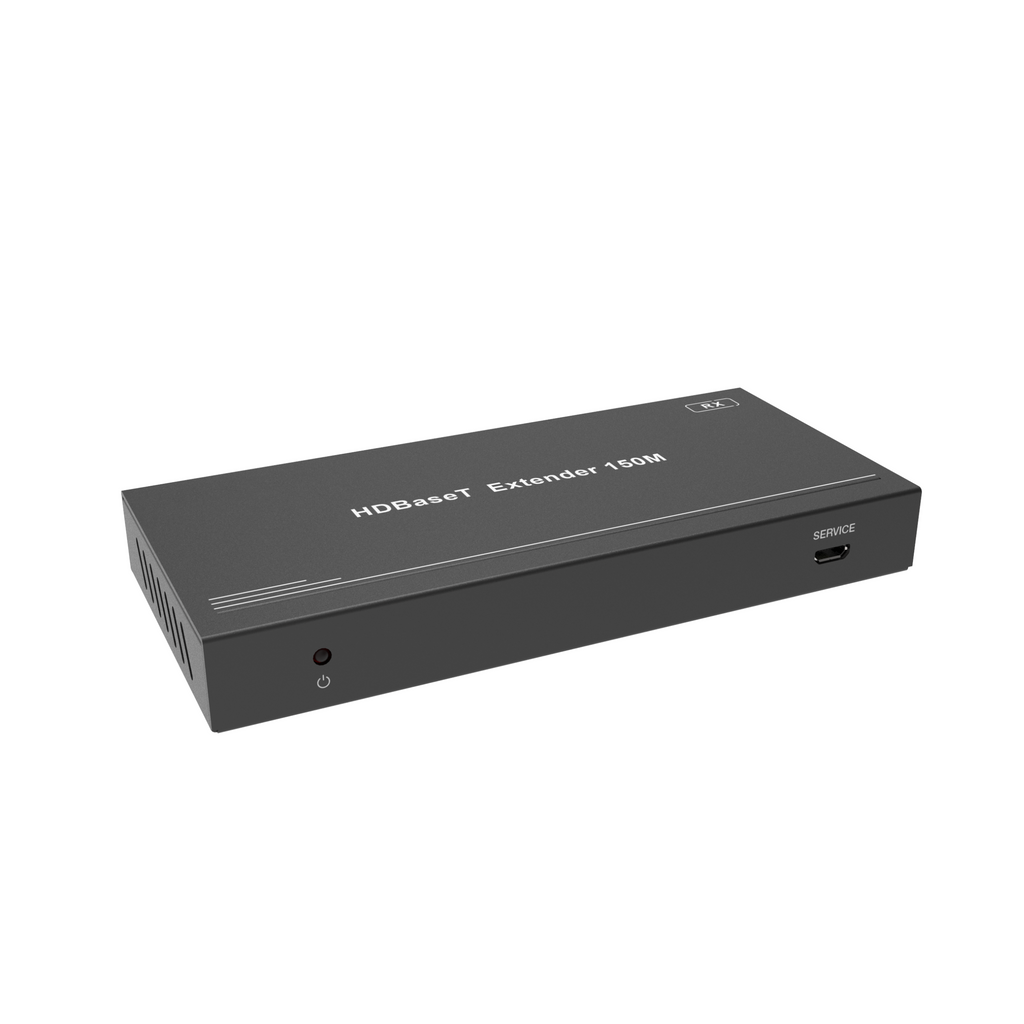

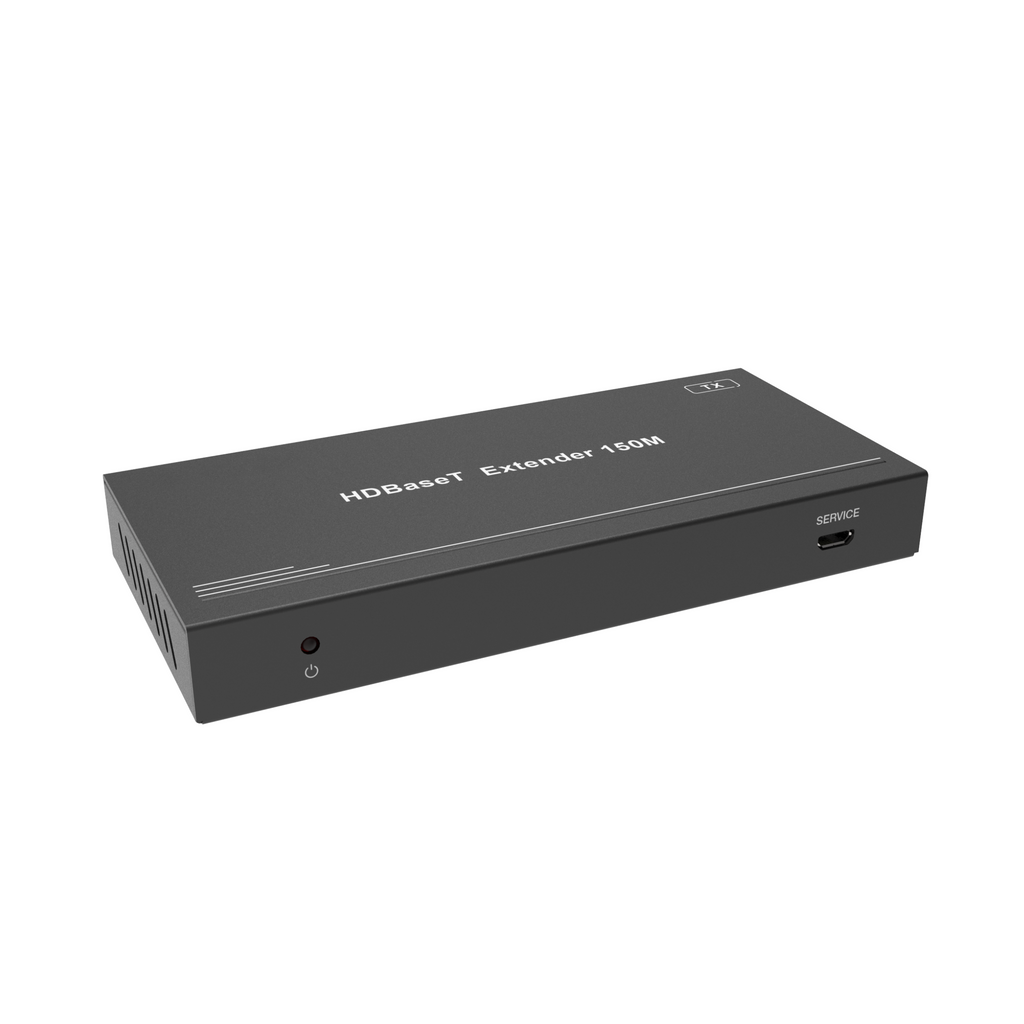

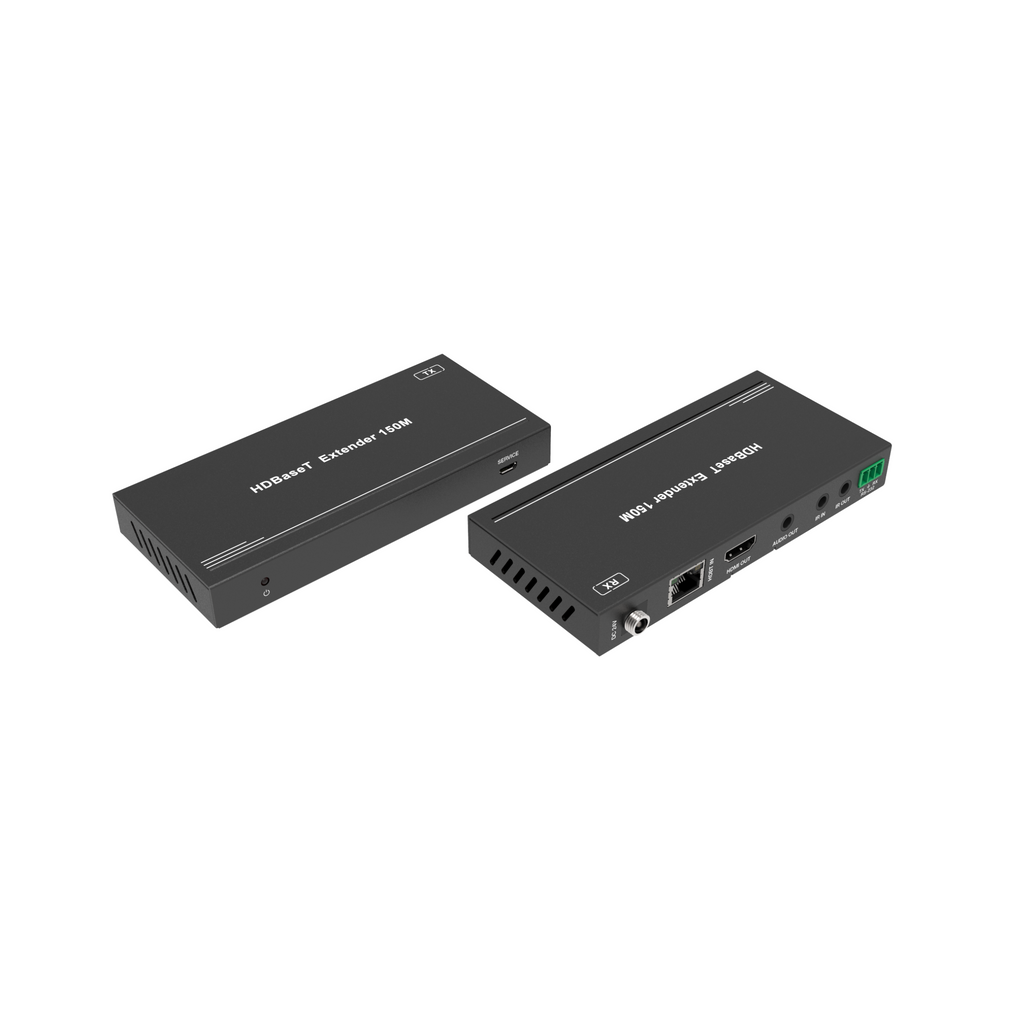

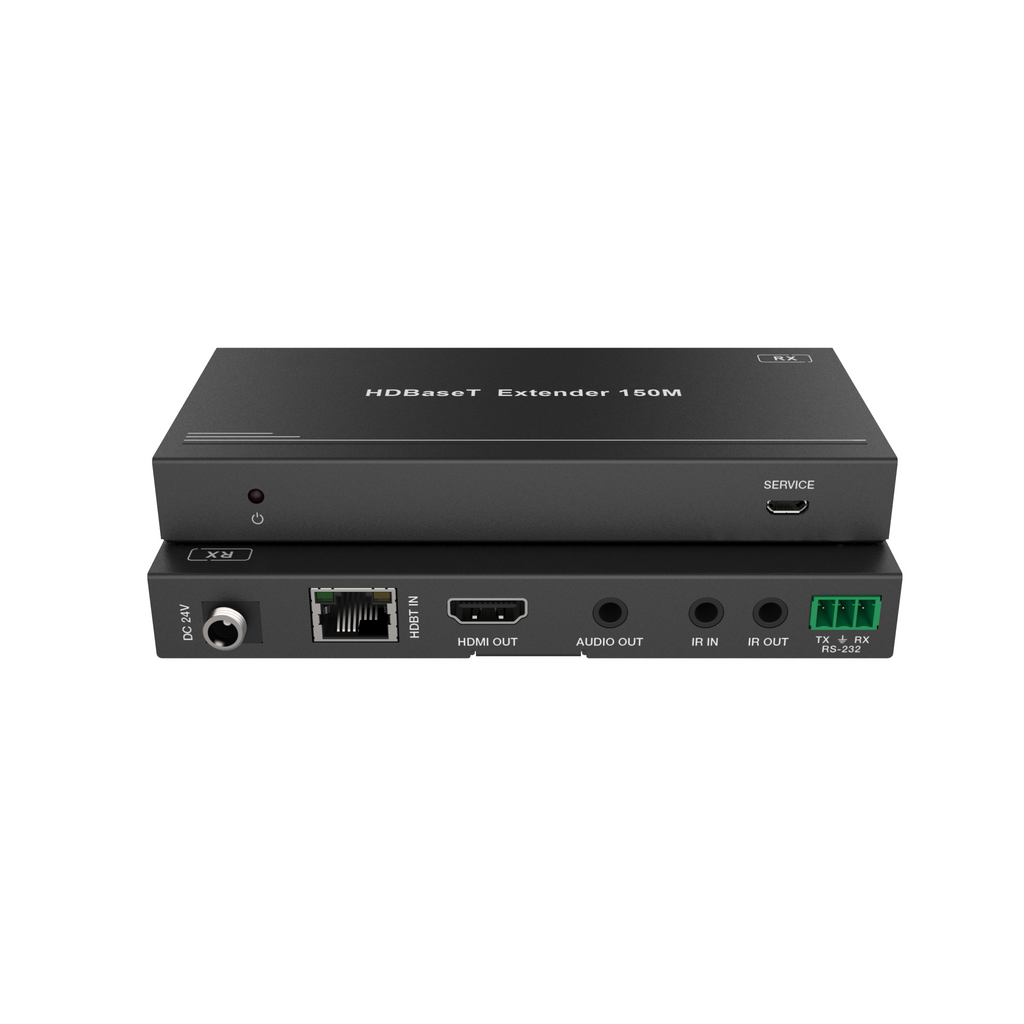

This 18Gbps HDMI Extender can extend high definition video / audio signal, RS-232, bi-directional IR, and the distance is up to 492ft / 150 meters between transmitter and receiver via a single CAT cable. It supports resolution up to 4K2K@60Hz 4:4:4, 18Gbps and HDCP 2.2. One HDMI loop port is available for output. It also supports de-embeded audio for L/R audio output and PoC function. In addition, the extender is equipped with two-way IR pass-through which allows for source and display control. This HDMI extender includes two units: transmitter unit and receiver unit. The transmitter unit is responsible for capturing HDMI input signal and carrying the signal via one cost effective Cat5e/6 cable, and transmitting / emitting IR control signals. The receiver unit is responsible for receiving the HDMI signal and transmitting / emitting IR control signal.

Technical Specifications

·        HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant

·        Support 18Gbps video bandwidth

·        The maximum extended transmission distance via a single Cat5e/6 cable: 394ft / 120 meters for 4K2K signal; 492ft / 150 meters for 1080P signal

·        Support one HDMI loop output on the transmitter

·        De-embeded audio to analog stereo output on receiver

·        With bi-directional IR, RS-232 and CEC pass-through

·        HDR, HDR10+, Dolby Vision and HLG function supported

·        Support PoC (Power over Cable) function

·        Compact design for easy and flexible installation

Download the technical specification sheet here - LINK
