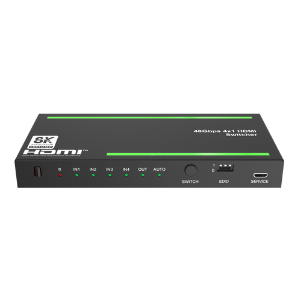

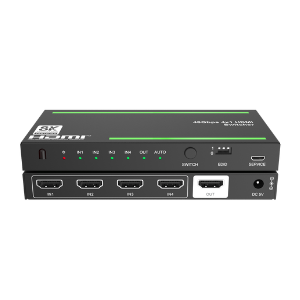

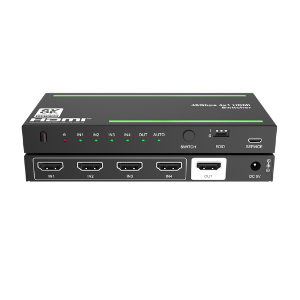

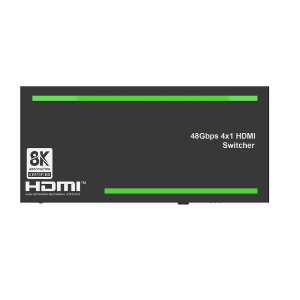

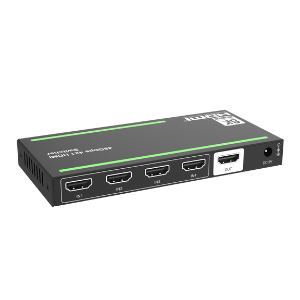

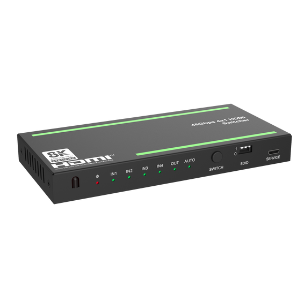

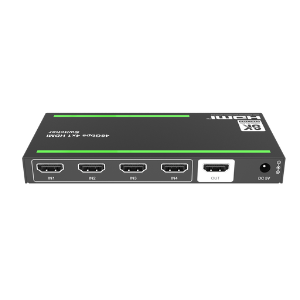

HDMI 2.1 Switcher 48Gbps (4x1) - Seamless

This 48Gbps 4x1 HDMI Switcher is an ultrathin auto switcher, with four HDMI video inputs and one HDMI output. The video resolutions is up to 8K@60Hz 4:2:0 12bit. It supports HDR 10, HDR 10+, Dolby Vision and multichannel audio format. Built-in EDID DIP switch supports advanced EDID management. Furthermore, the firmware update at USB Type C port is supported.

Technical Specifications

·        HDMI 2.1 and HDCP 2.3 compliant

·        Support 48Gbps FRL and 18Gbps TMDS video bandwidth

·        8K@60Hz 4:2:0 12bit, 8K@30 4:4:4 12bit, 4K@120Hz 4:4:4 12bit video support

·        Support HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through

·        HDMI 2.1 protocols: VRR, ALLM, QMS, QFT, SBTM are supported

·        Support HDMI audio formats: LPCM 7.1CH, Dolby TrueHD, Atmos and DTS-HD Master Audio

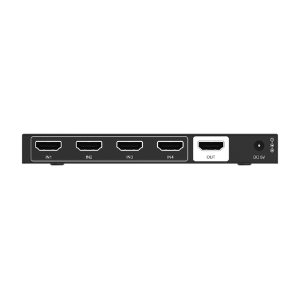

·        4 x HDMI inputs routed to 1 x HDMI output

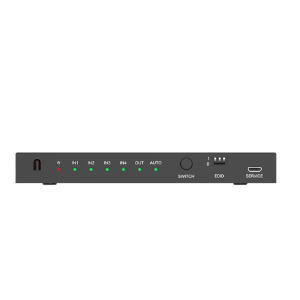

·        Control via front panel button and IR remote

·        Support auto input switching and manual input switching

·        Advanced EDID management

·        CEC control from TV at output to source at input

Download the technical specification sheet here - LINK
