Description

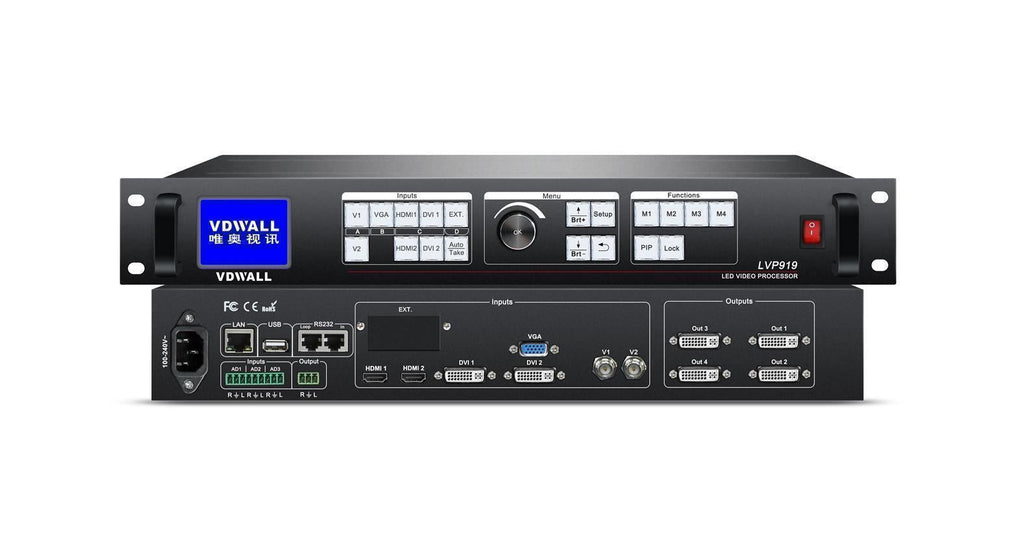

LED Video Splicer LVP919 Series
Dual-picture,4 DVI Outputs Mosaic
4 DVI Outputs, 4K2K LED screen driving
Technical Specifications:
- Faroudja® Real Colorpunctures Processing, Faroudja® DCDI Cinema Processing，Faroudja® TureLife™Video Image Enhancement
- 4*DVI output, Single output has the resolution up to 1920 x 1200_60Hz
- Zoom in synchronously mosaic, single unit maximum mosaic level up to 7680 pixels or vertical 4800 pixels, or 3840x2400 pixels
- Multiple analogy and digital mixed signals input:2xCVBS、1xVGA、2xHDMI、2xDVI、1xExt
- Seamless Switching, Fade in Fade Out Switching
- PIP (Picture in Picture), Any PIP display; AIAO (Any In Any Out), any input crop and any output
- Multiple output resolutions can be set, flexibly adapting to the size of the LED screen
- Can present multiple user-defined display modes, one button switching between modes
- Control modes: panel button, software by RS232/USB/LAN, flexible and convenient
- Add 4 channels of HDMI audio (only when DVI, HDMI interface is connected to HDMI signal) and 1 channel of SDI audio, up to 8 channels of audio synchronously switching
- 24/7 Application, stable and reliable
